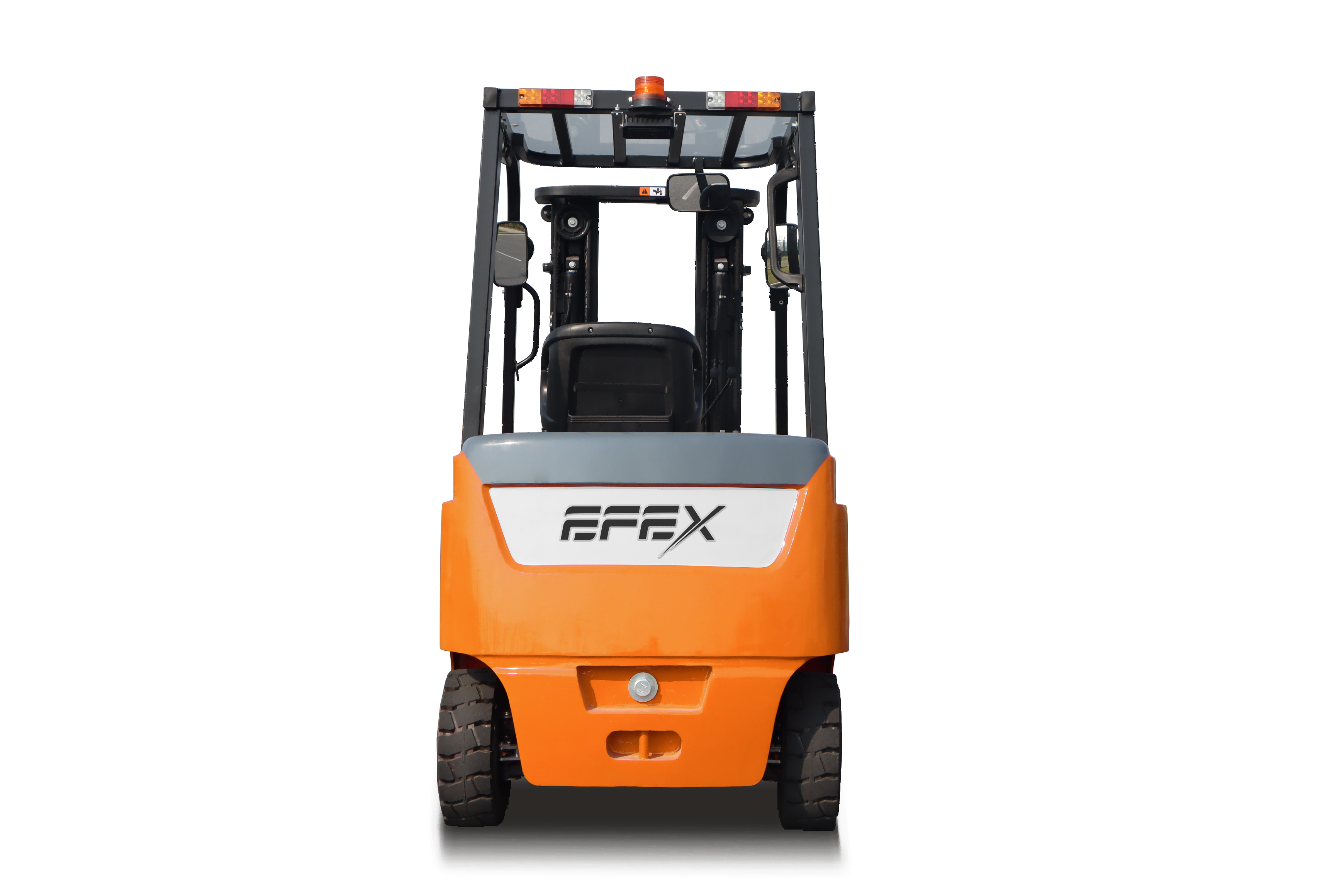

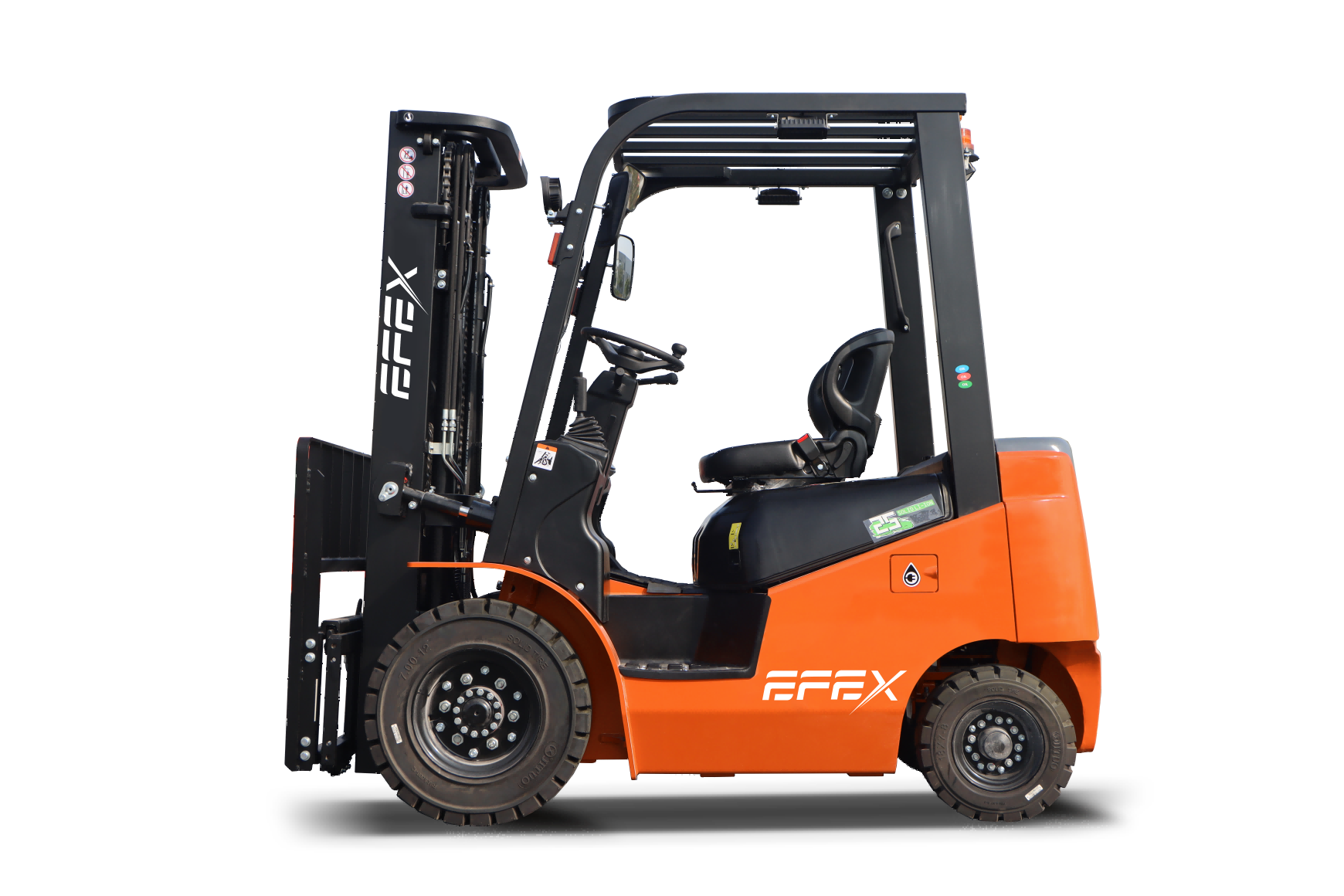

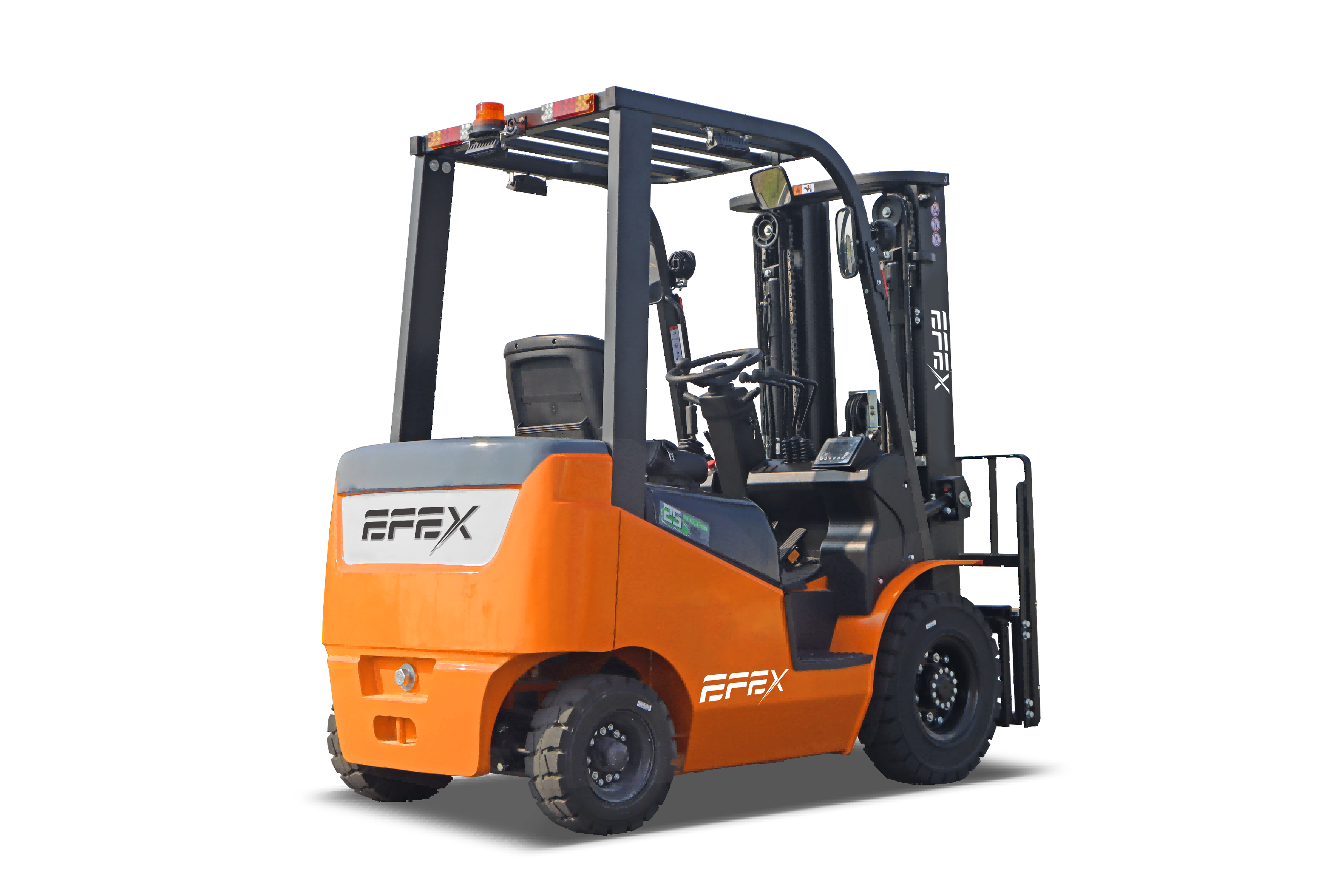

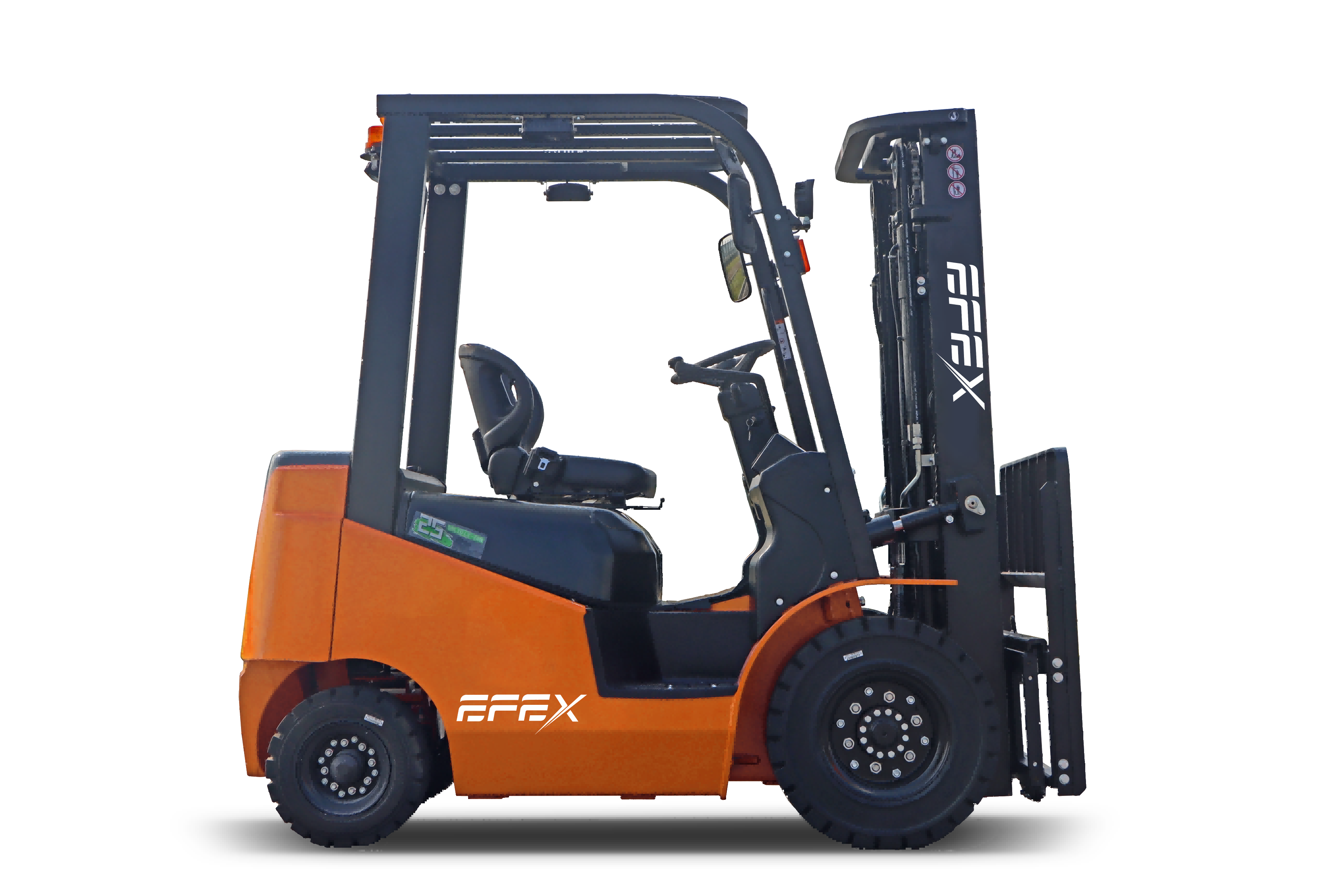

C Series E-Forklift 2-2.5T
CPD20/25

Features
-

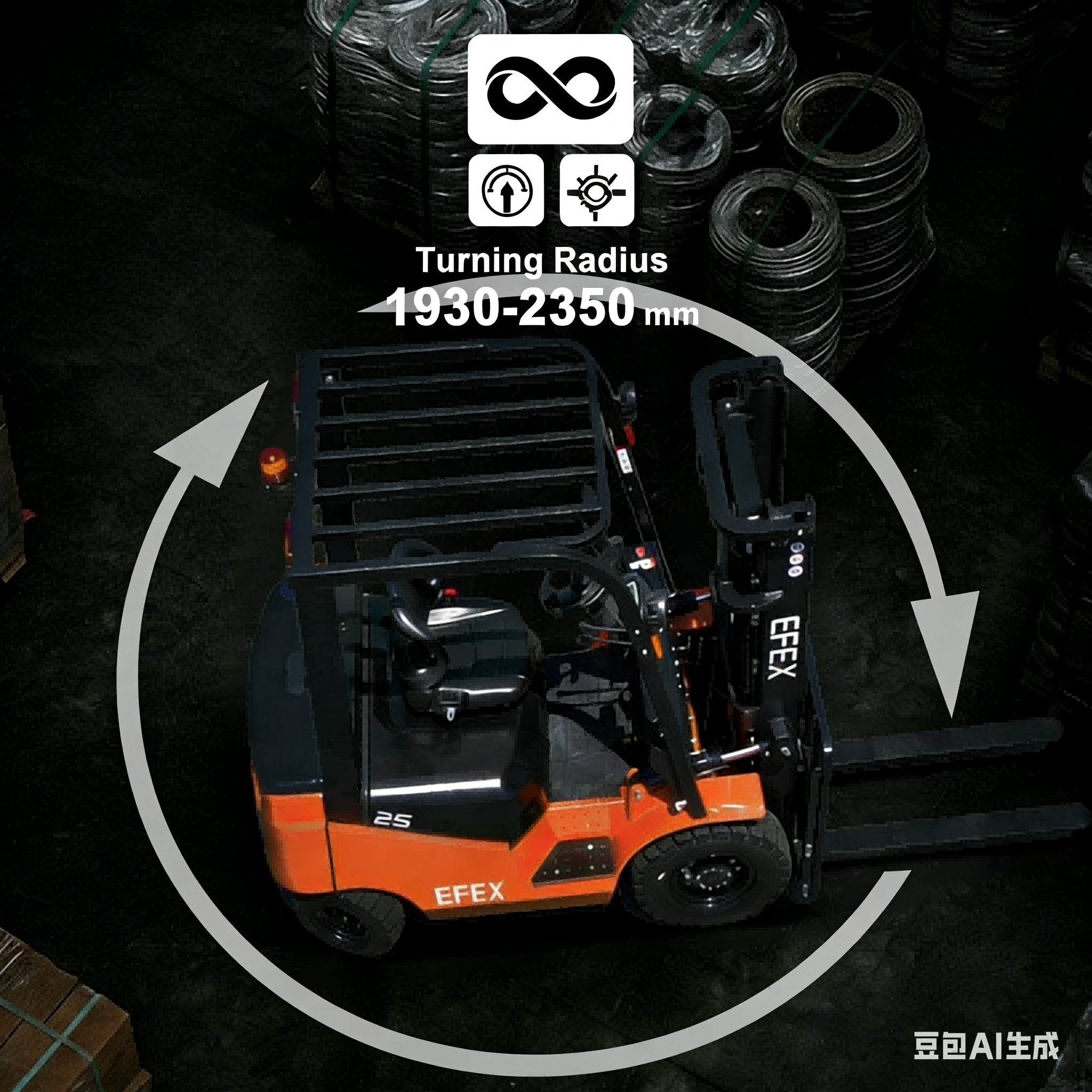

Small turning radius, the forklift can flexibly work in indoor applications. -

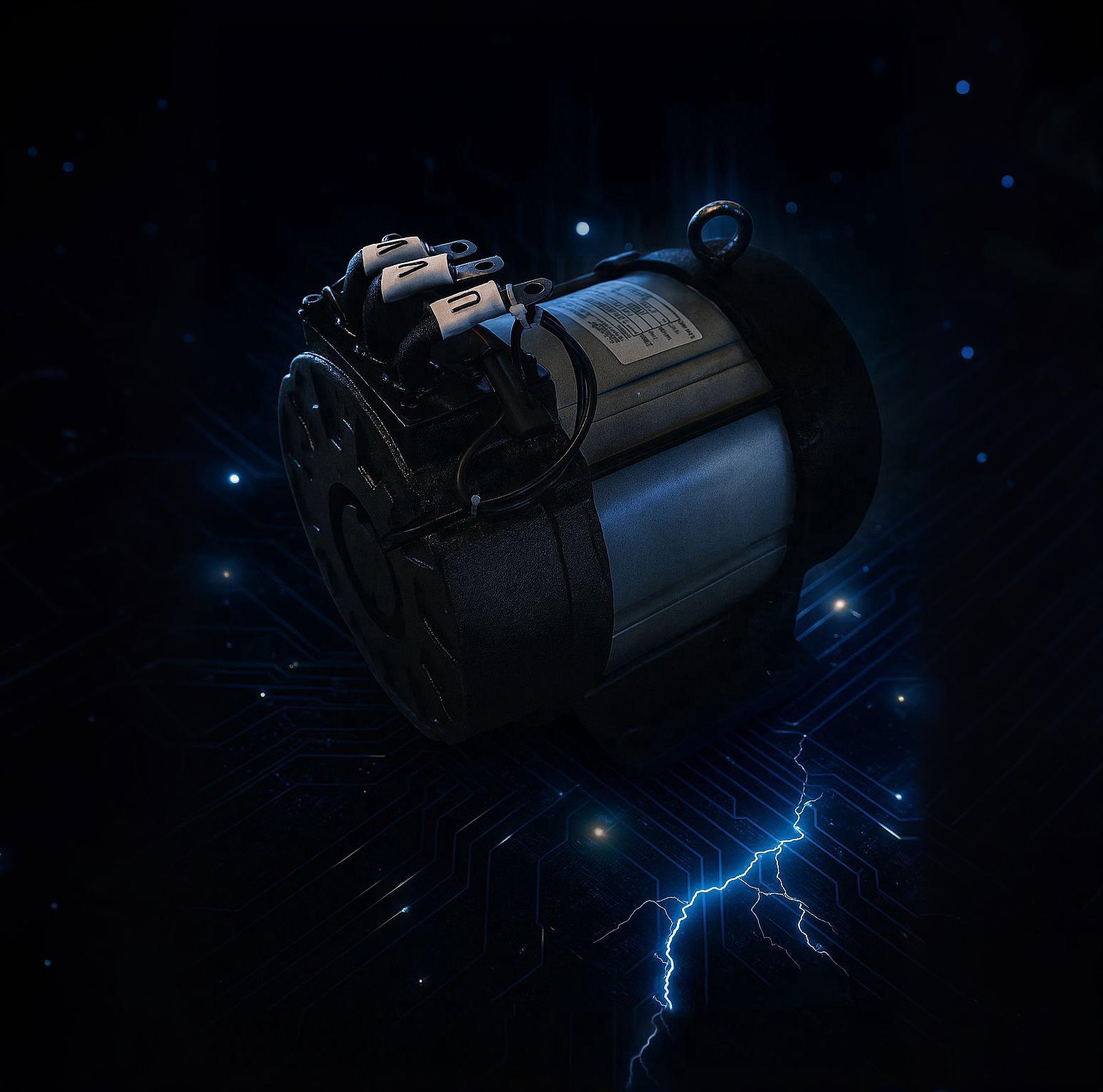

Dual permanent magnet synchronous motor system,the energy consumption is reduced by 20%. Optimal motor power combination, motor temperature is stable while operation noise is less. -

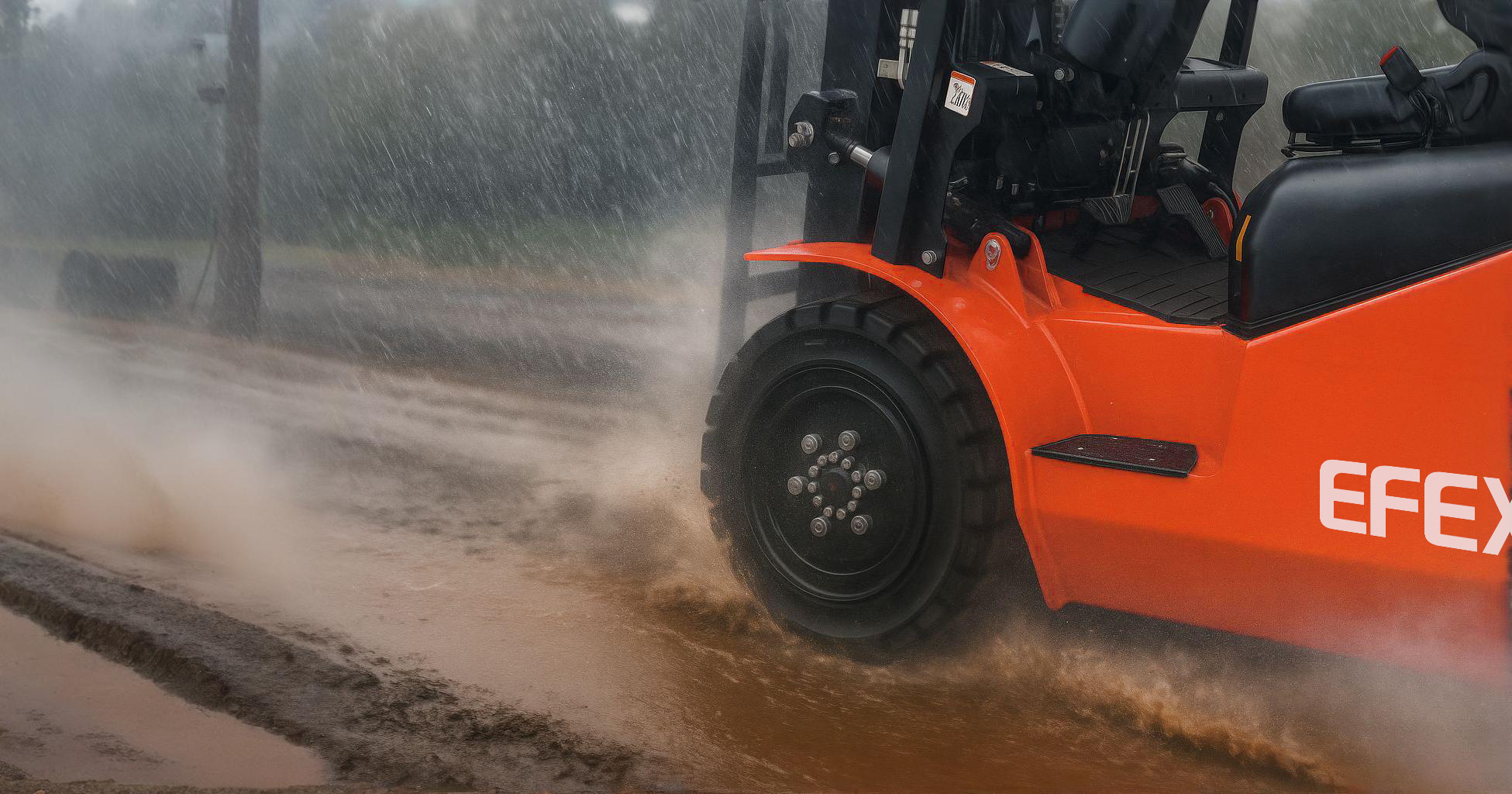

The waterproof level reaches IP54, that enables the forklift to adapt to rainy roads outdoors. -

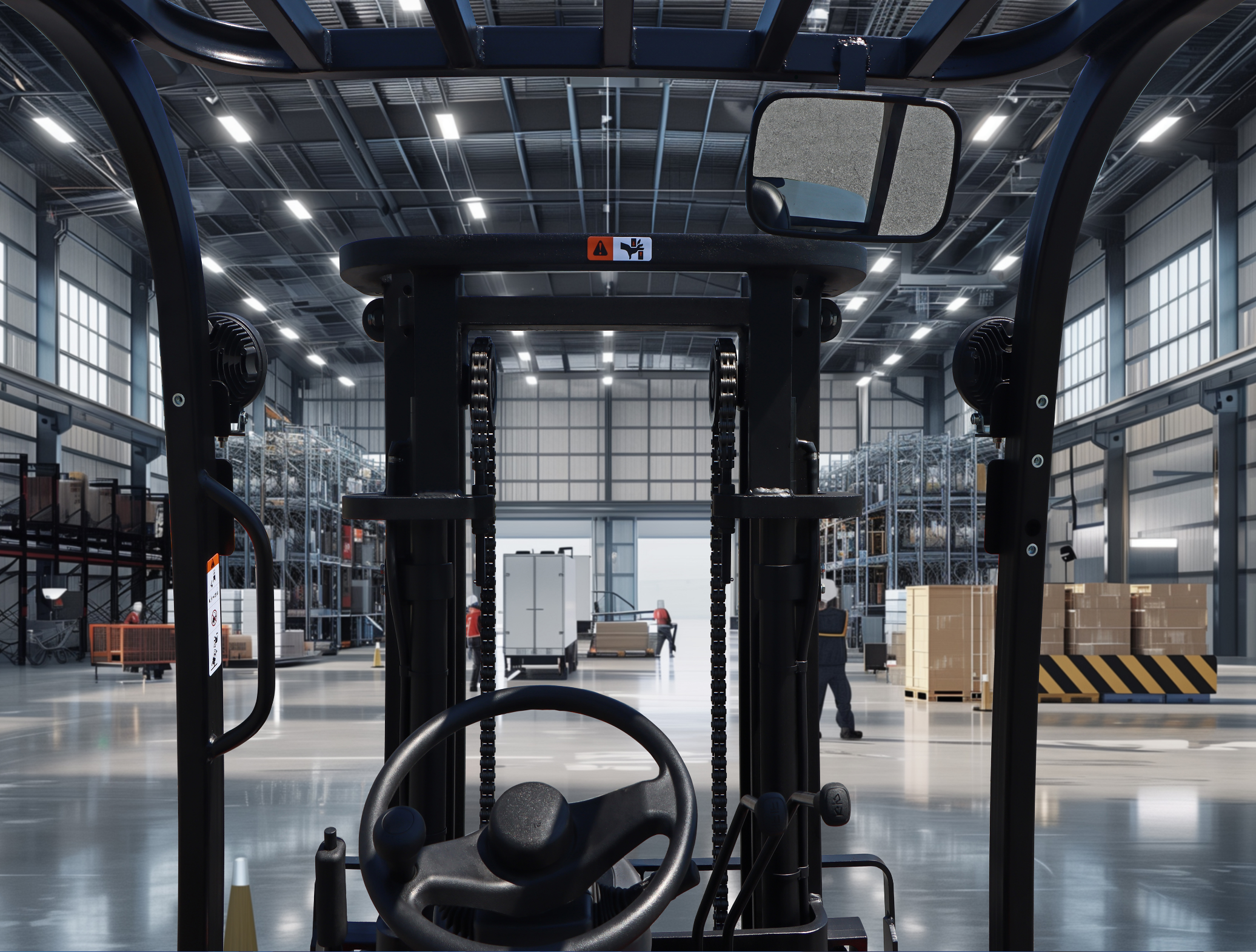

Mast and overhead guard have excellent visibility at the most frequently used lift heights. -

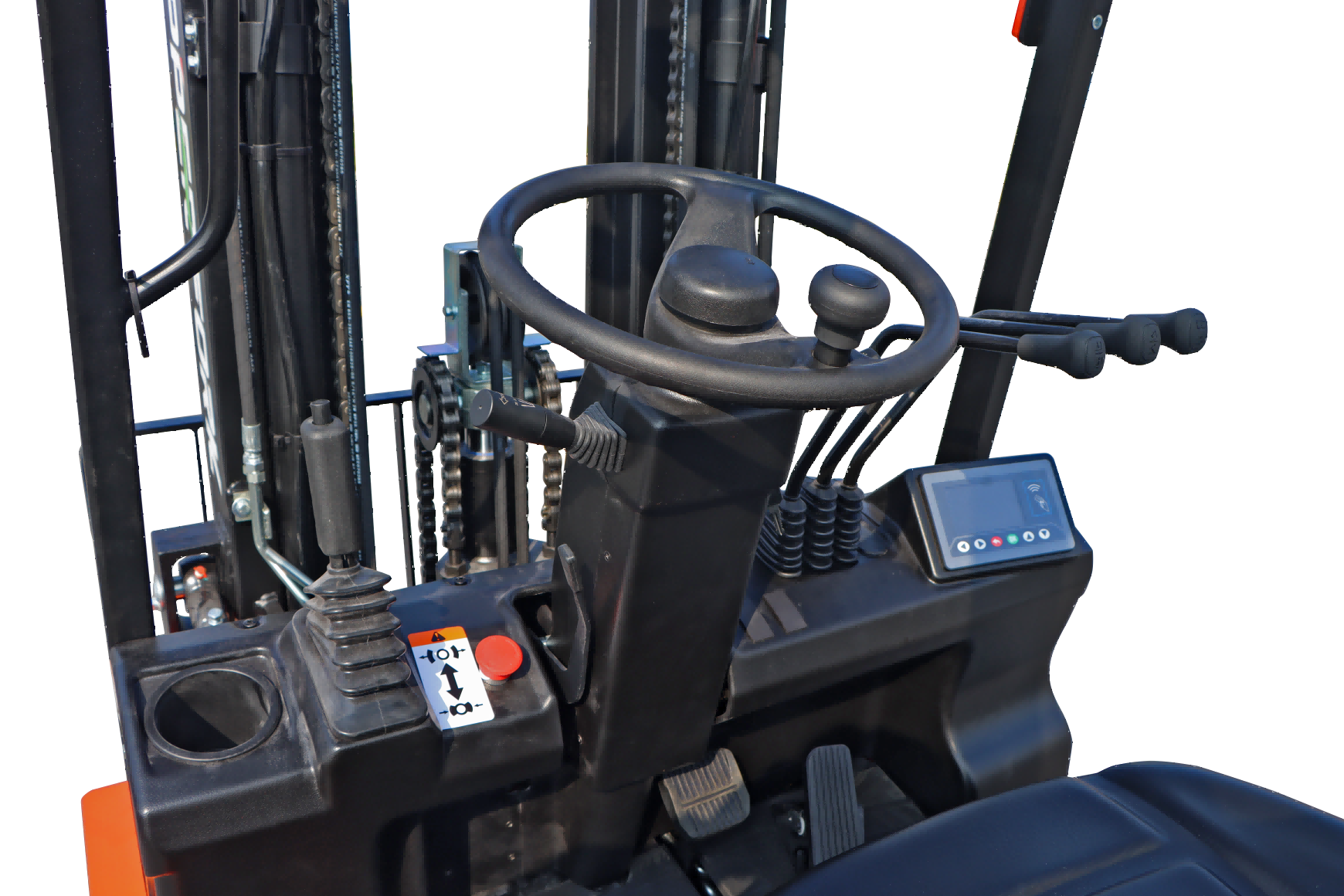

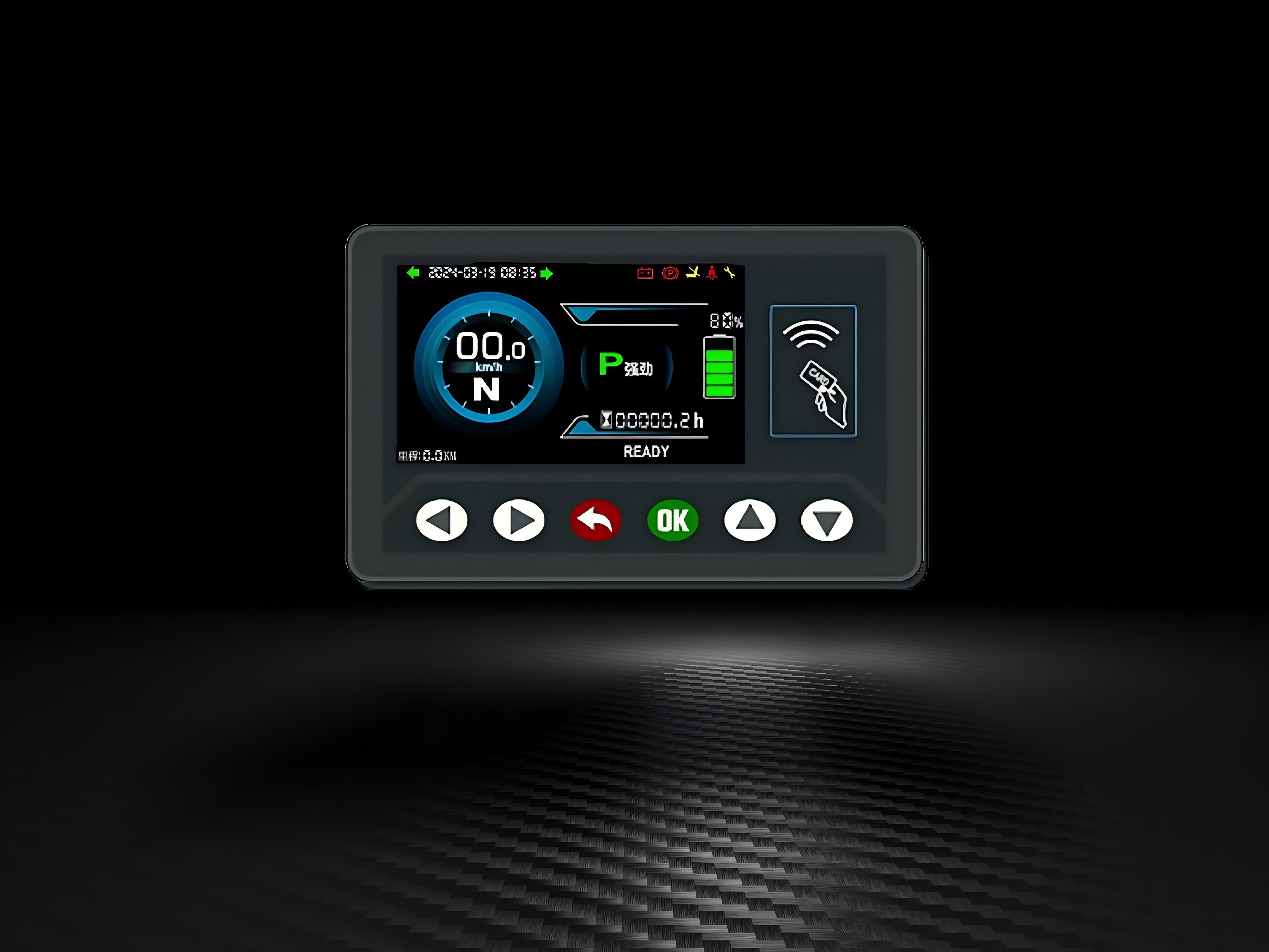

The large-screen instrument has more adjustable parameters, that are shown in an easy-to-monitor digital format. -

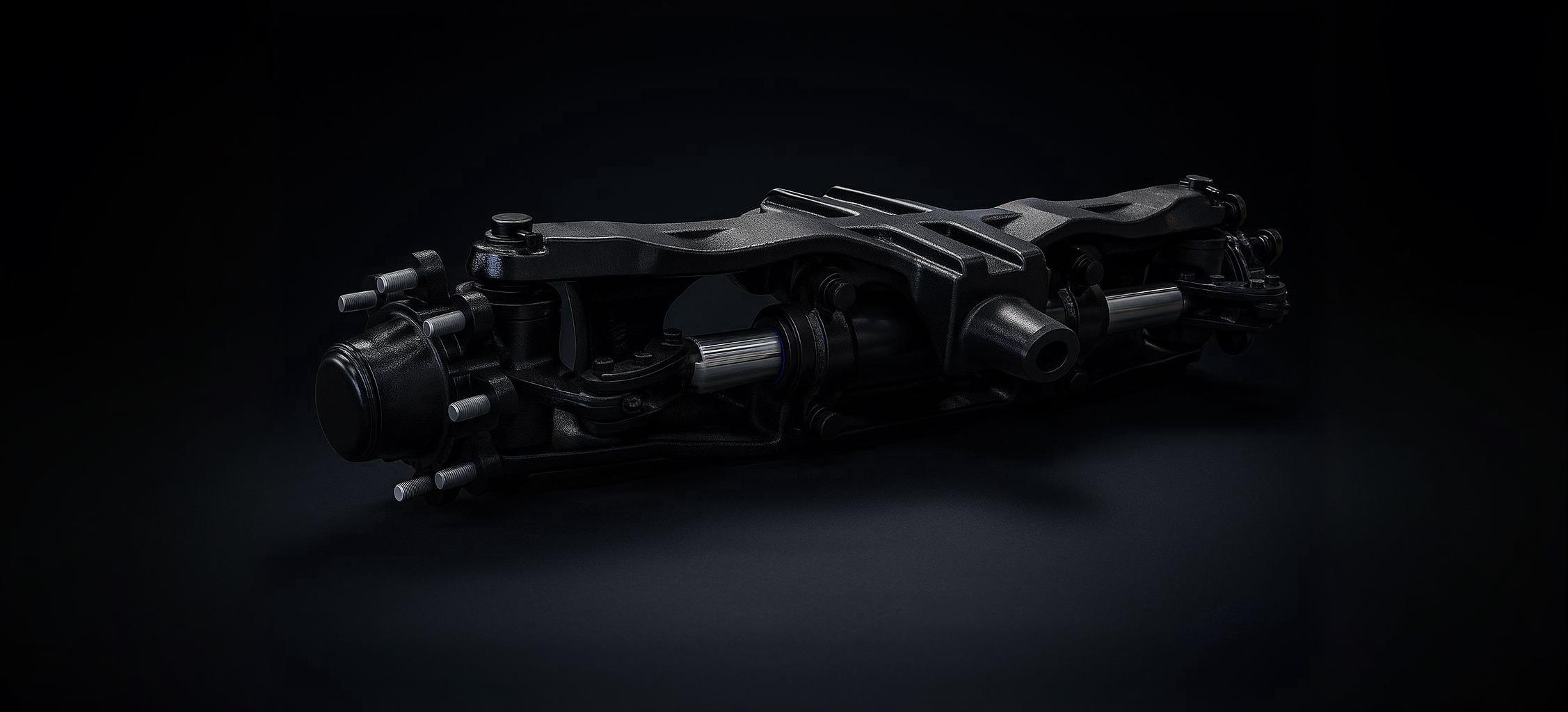

The mast, drive and steering axles, hydraulic system are the same like the components of internal combustion forklifts.
Main Parameters
| Specification/Model | CPD20 | CPD25 |
| Power | Electric | Electric |
| Rated Capacity | 2000Kg | 2500Kg |
| Load Center | 500mm | 500mm |
| Max. Lifting Height | 3000mm | 3000mm |
| Battery Voltage | 76.8V | 76.8V |
| Battery Capacity | 230/280/320/460Ah | 230/280/320/460Ah |
| Drive motor rating S2 60 min | 12kW | 12kW |
| Lift motor rating at S3 15% | 16kW | 16kW |
| Service Brake | Hydraulic | Hydraulic |
| Parking Brake | Mechanical | Mechanical |
