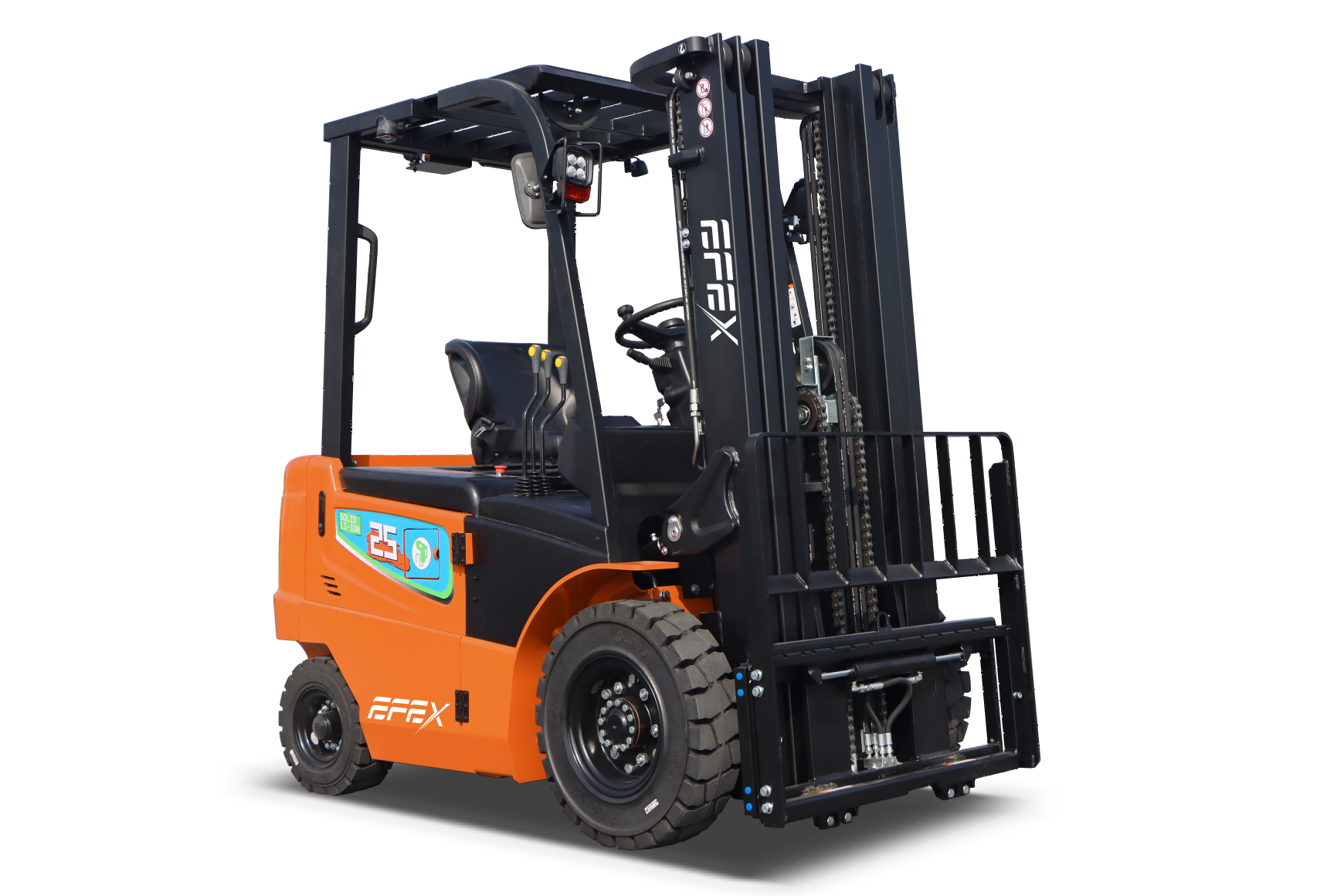

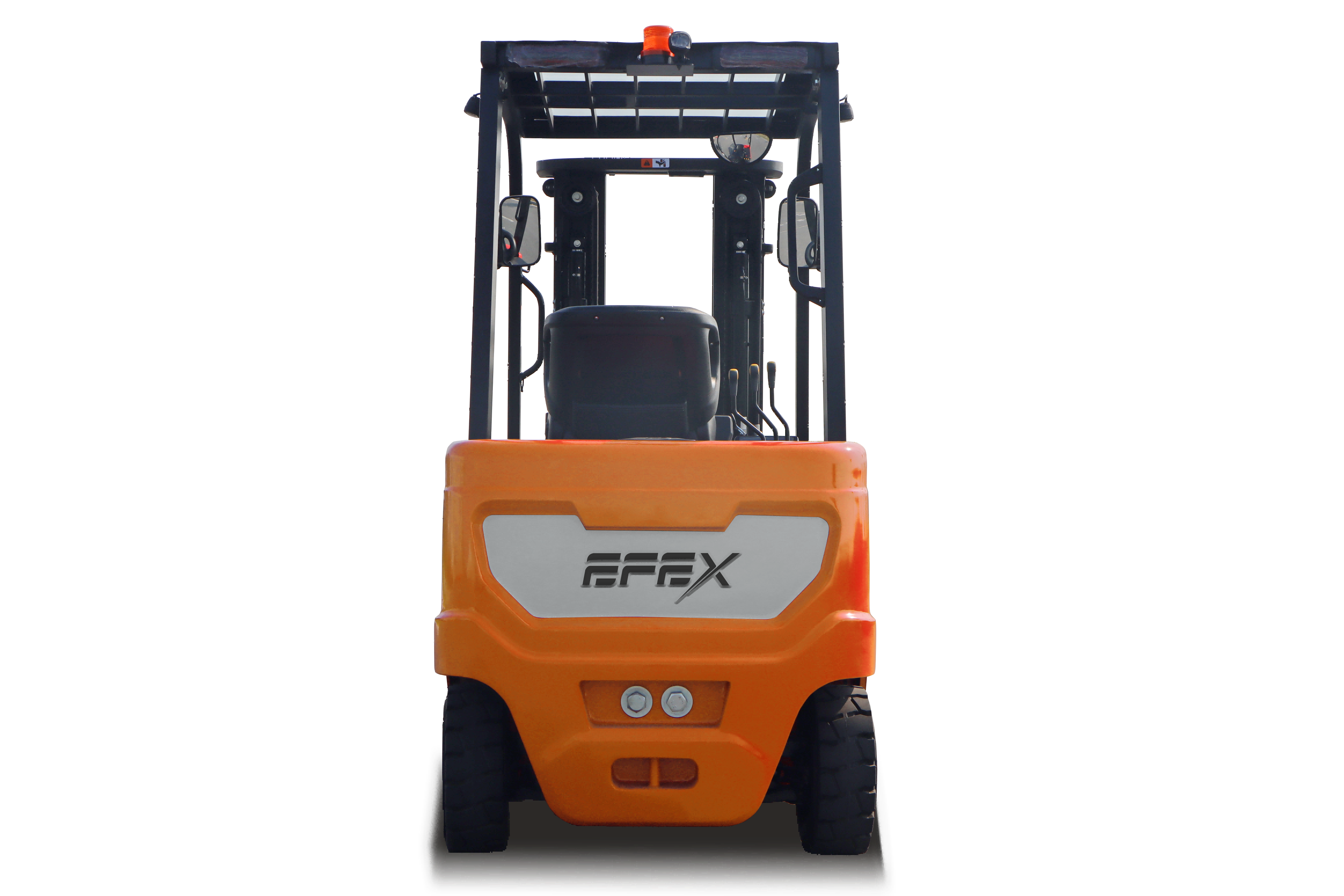

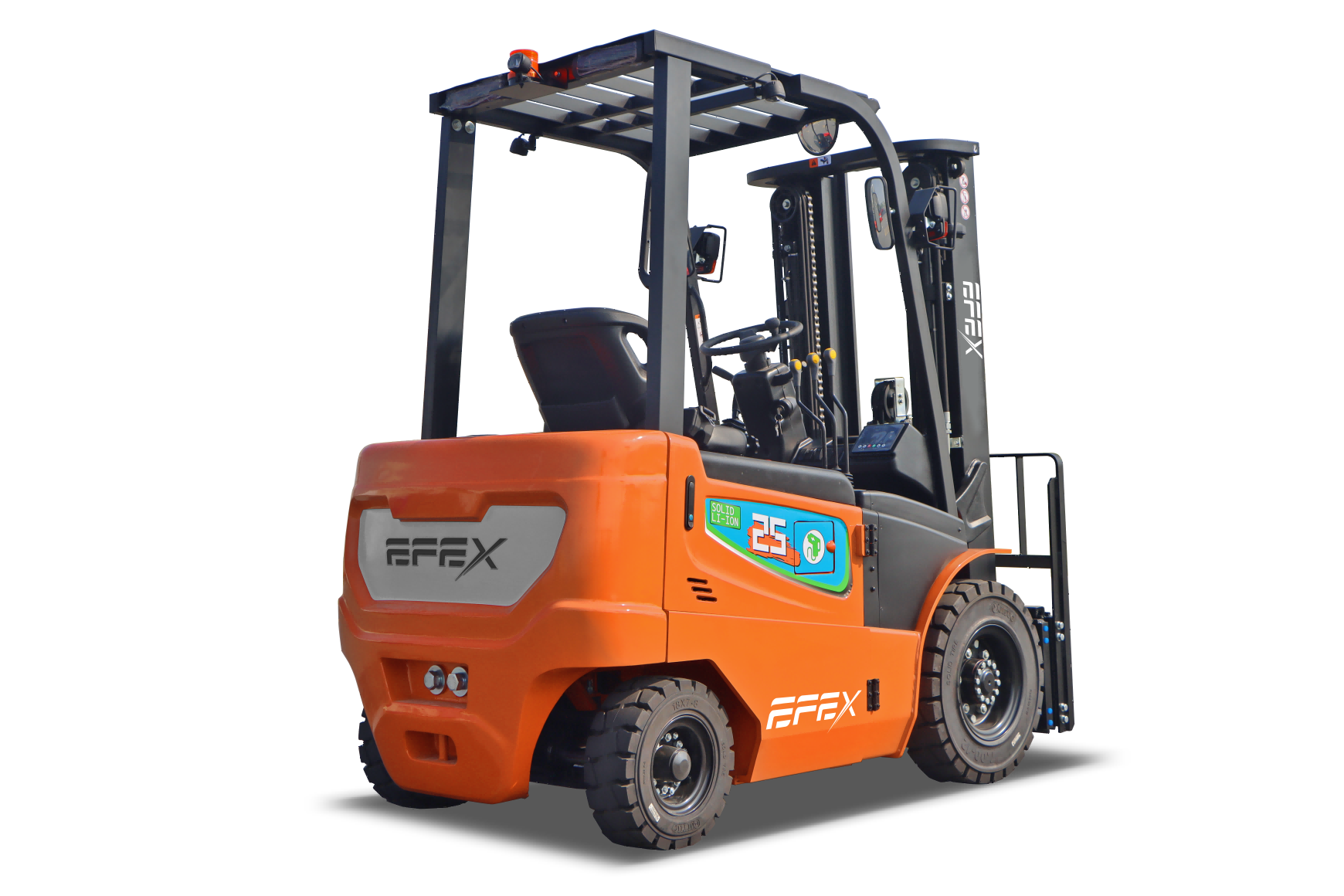

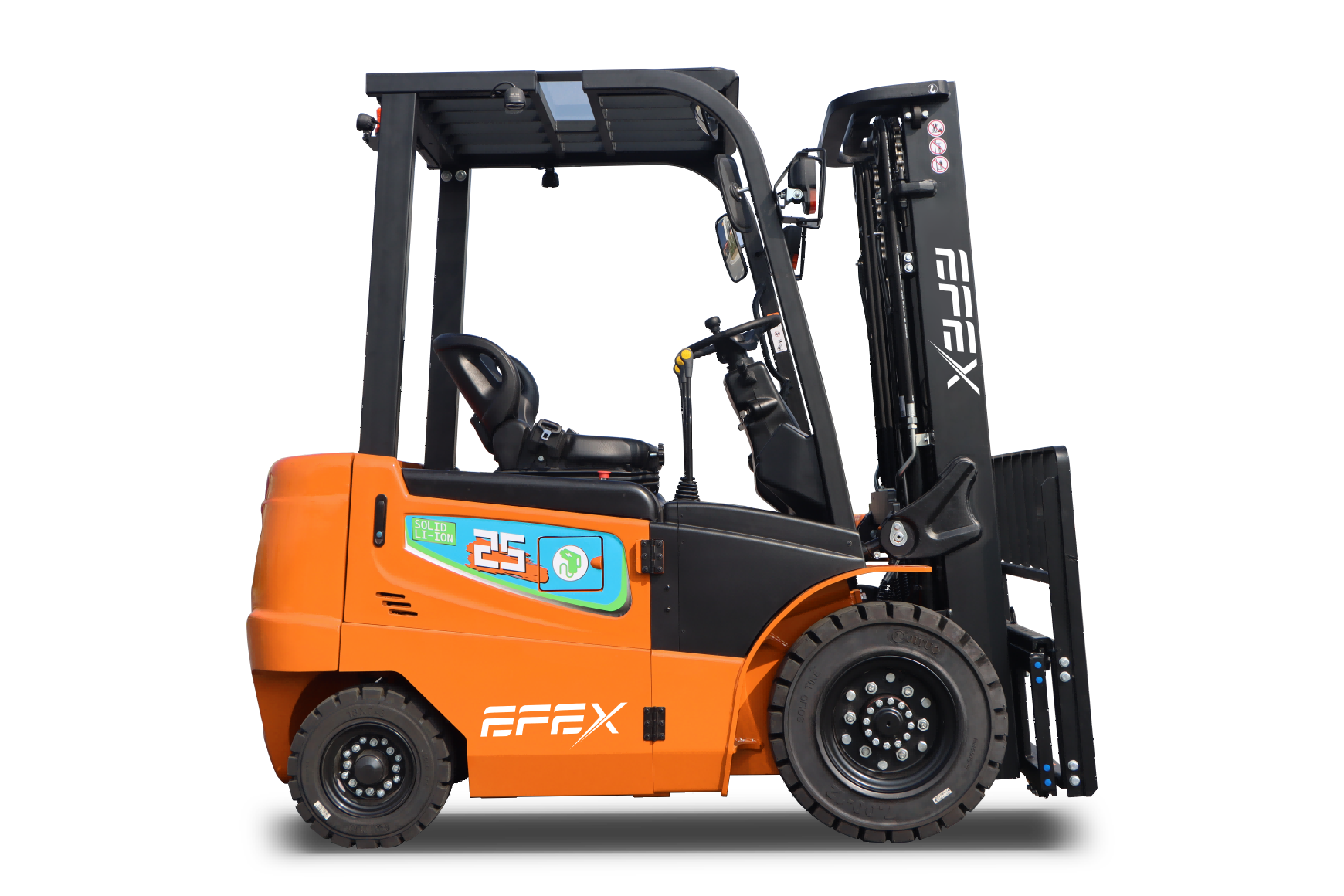

S Series E-Forklift 2-2.5T

CPD20/25T

Features

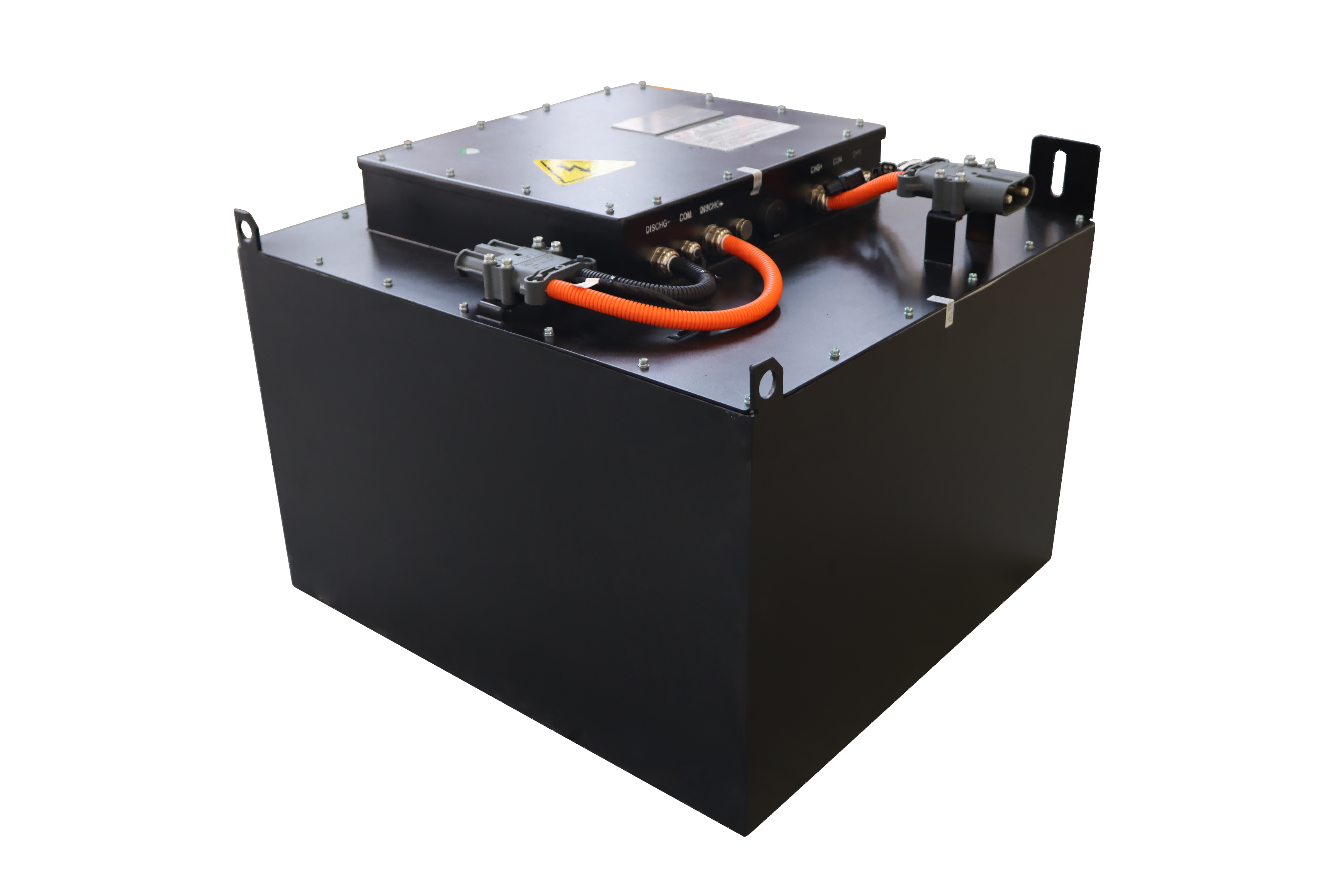

  • Independently developed solid-state lithium battery ensures safe operation and longer working time.

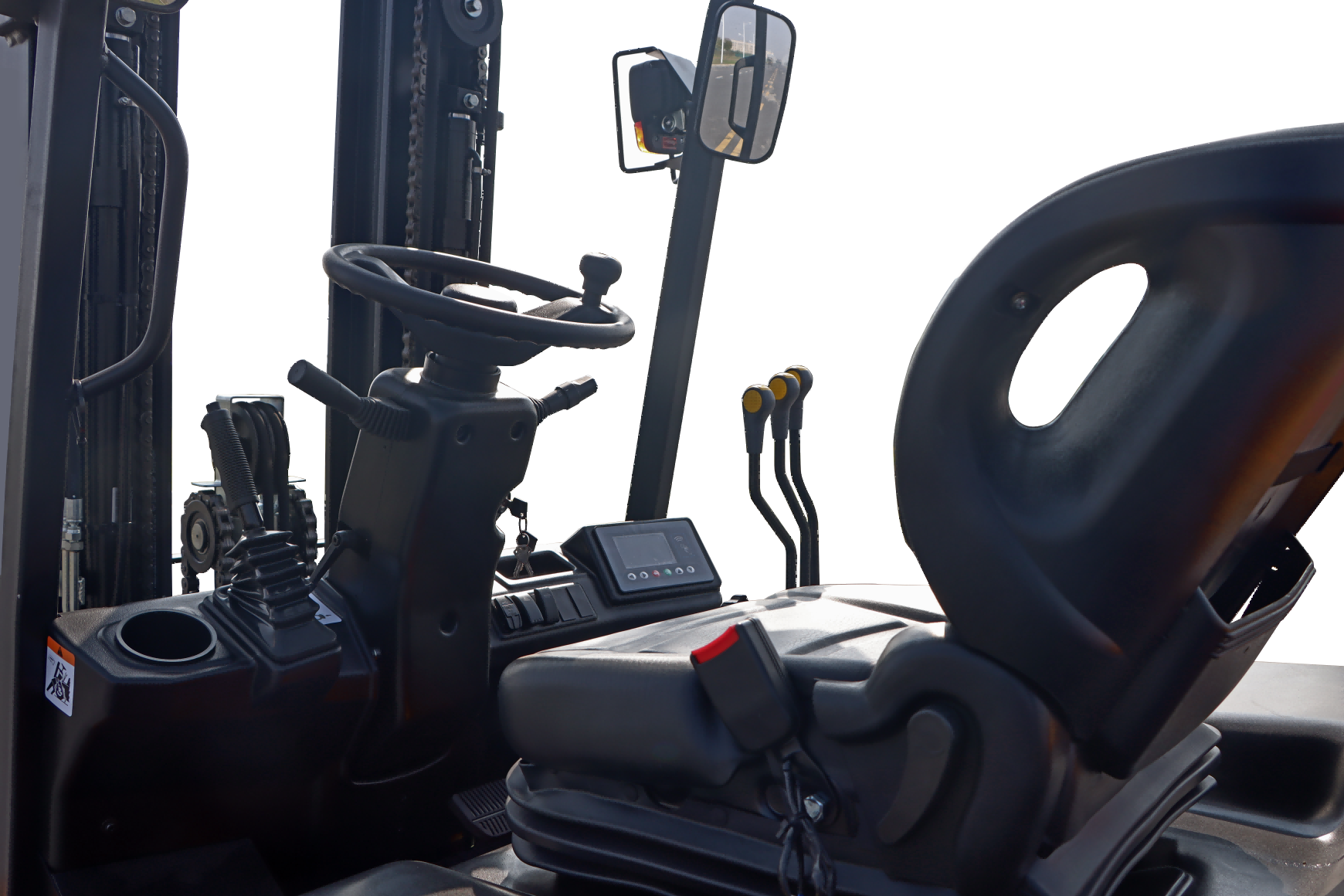

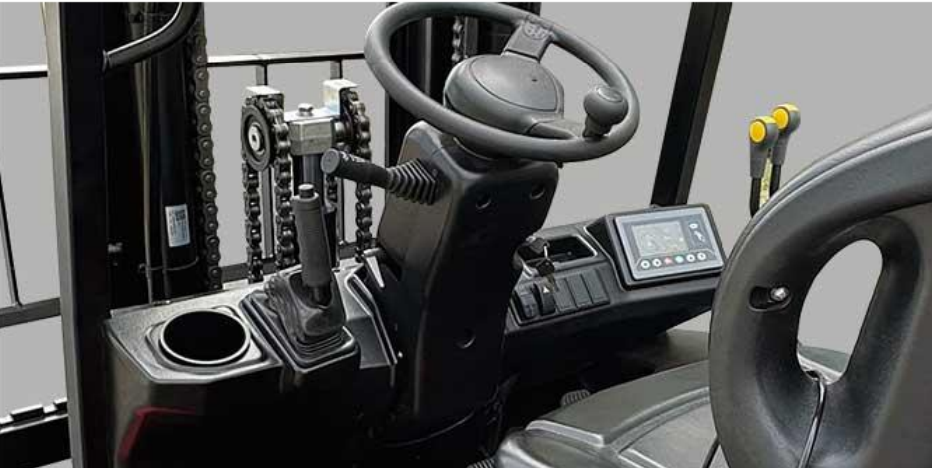

  • New designed control panel with three speed operation mode.

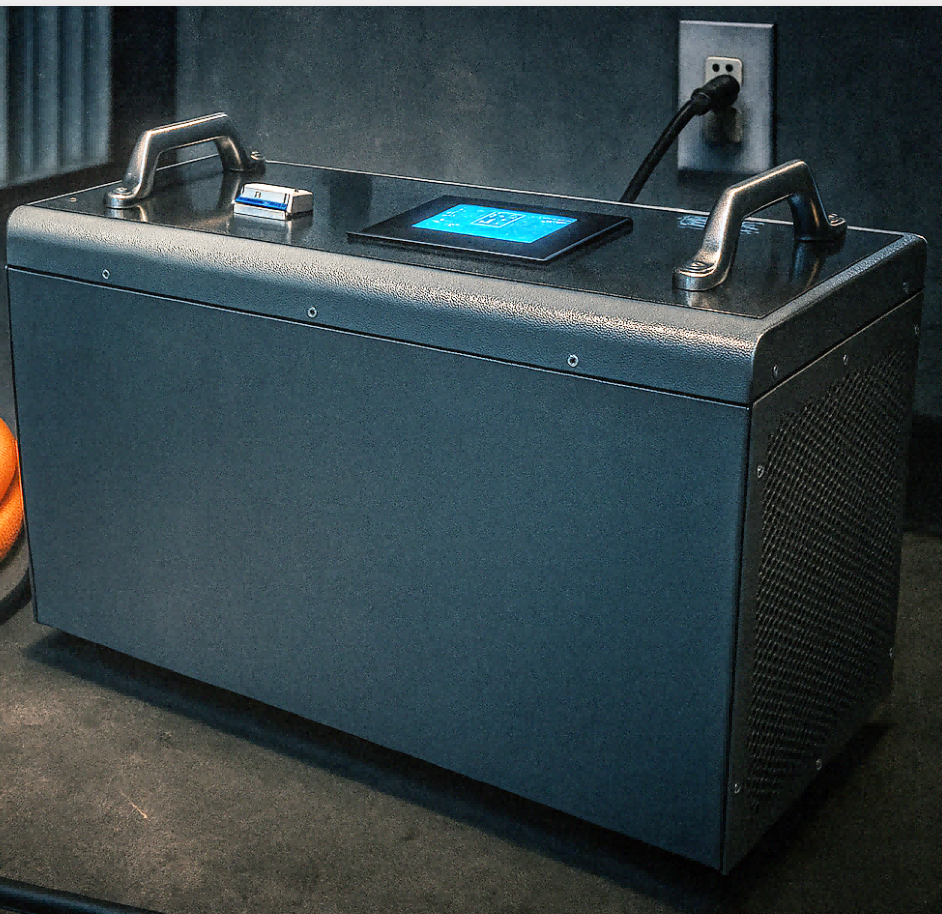

  • Battery charger reaches IP54 standard.

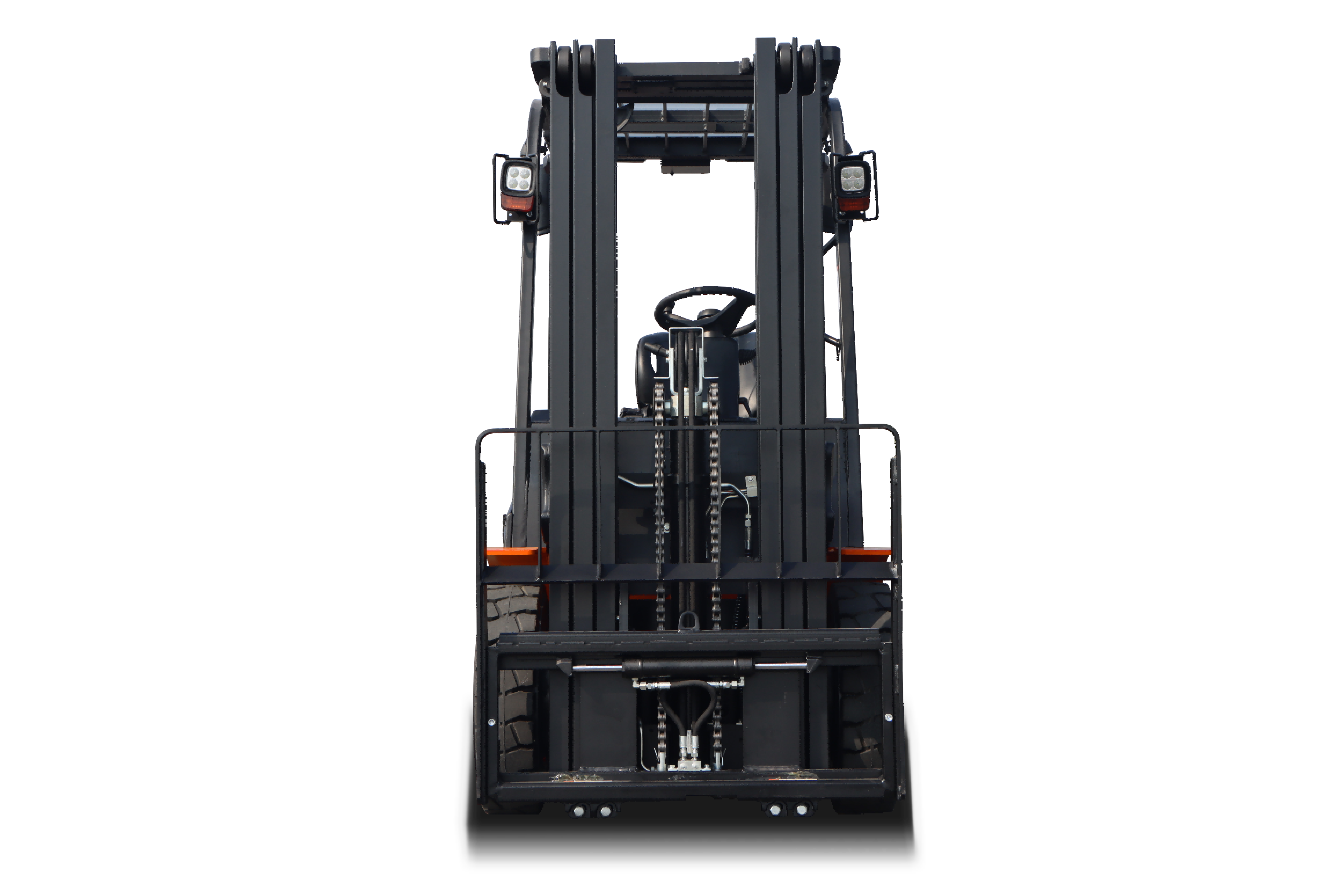

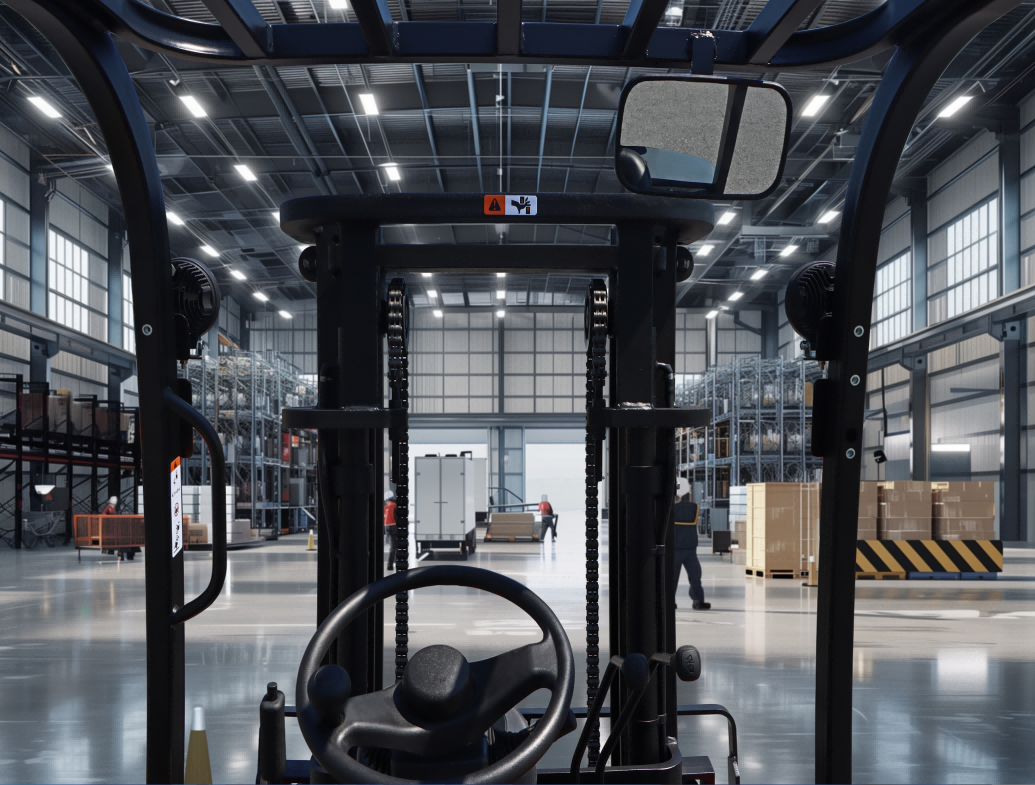

  • Mast and overhead guard have excellent visibility at the most frequently used lift heights.

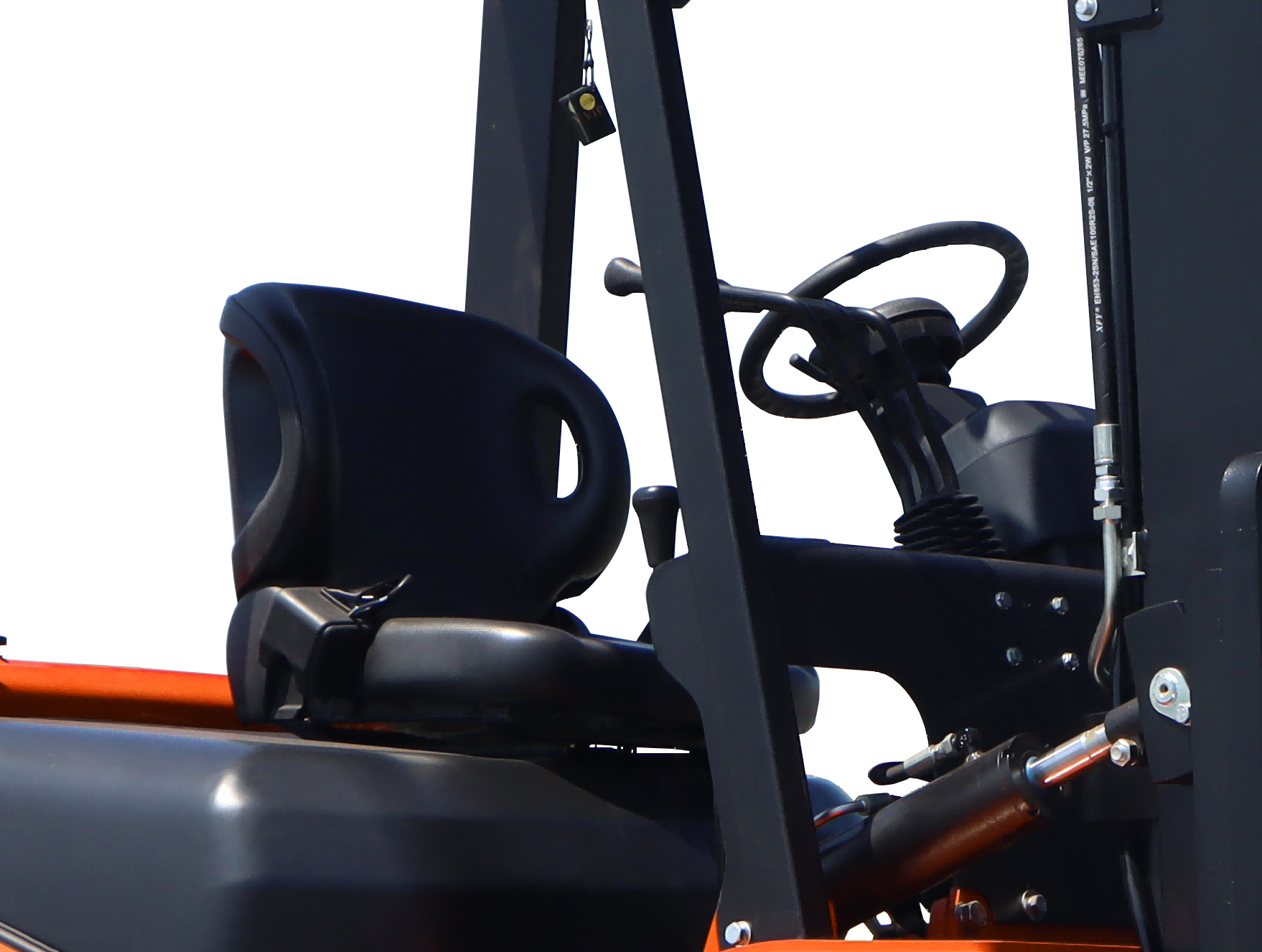

  • Suspension seat is as standard.

Main Parameters

Specification/Model CPD20T CPD25T
Power Electric Electric
Rated Capacity 2000Kg 2500Kg
Load Center 500mm 500mm
Max. Lifting Height 3000mm 3000mm
Battery Voltage 76.8V 76.8V
Battery Capacity 240/300/360/480Ah 240/300/360/480Ah
Drive motor rating S2 60 min 10kW 10kW
Lift motor rating at S3 15% 16kW 16kW
Service Brake Hydraulic Hydraulic
Parking Brake Mechanical Mechanical
