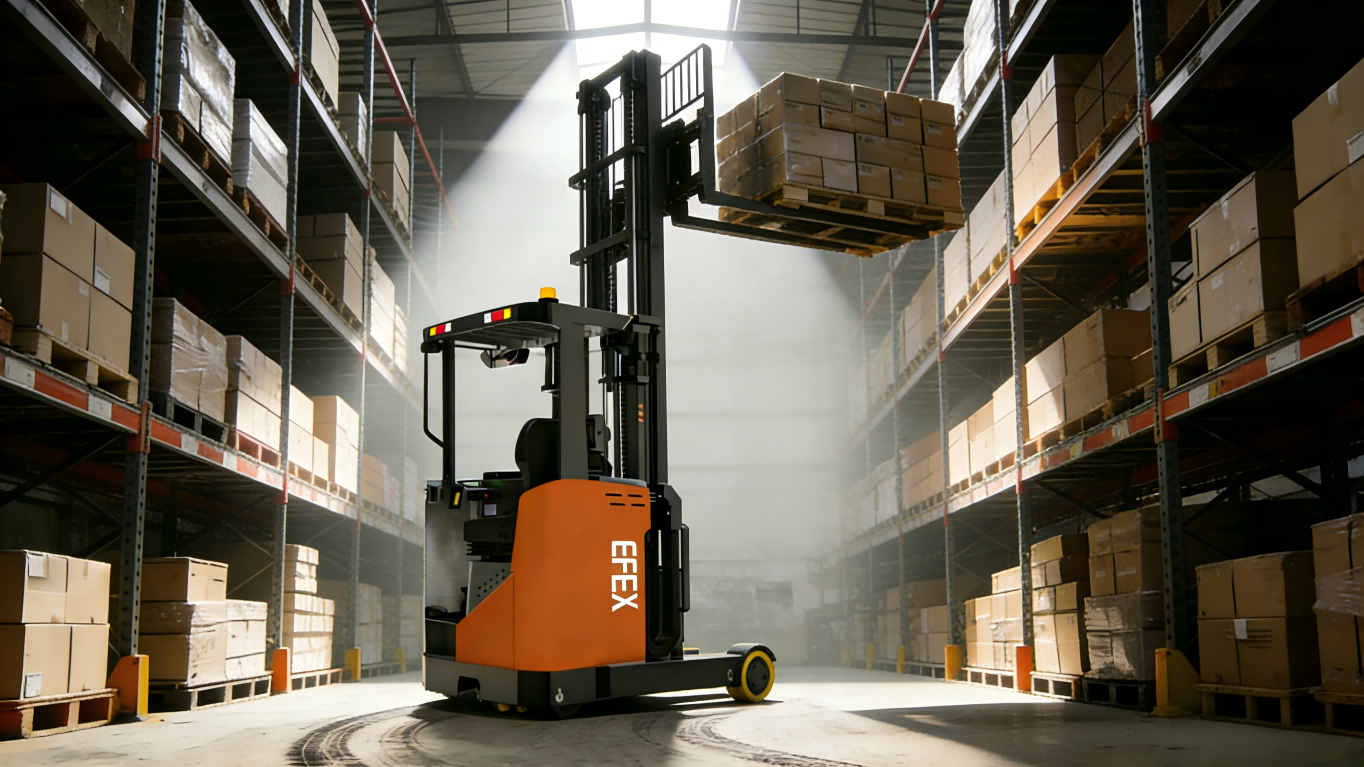

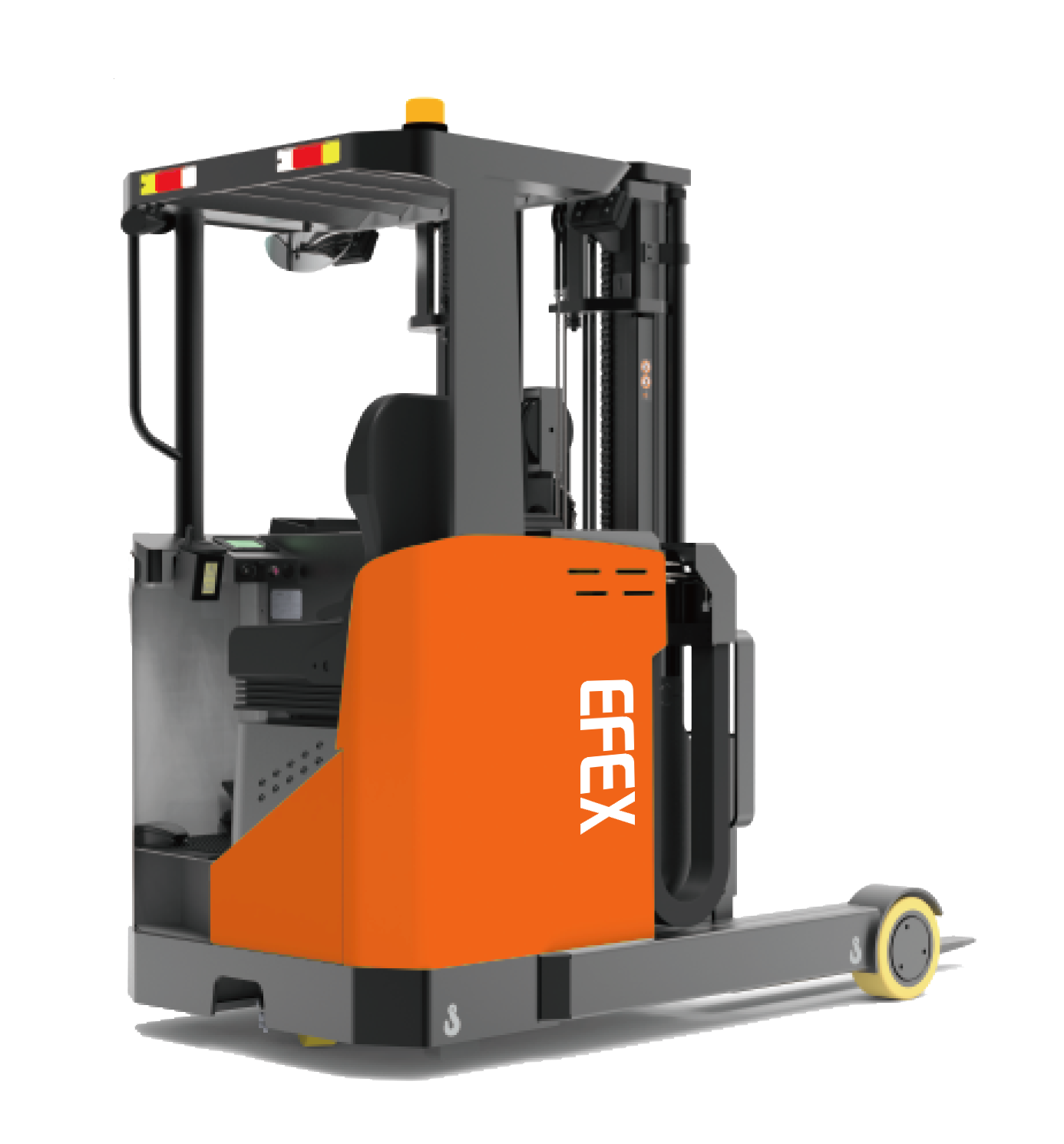

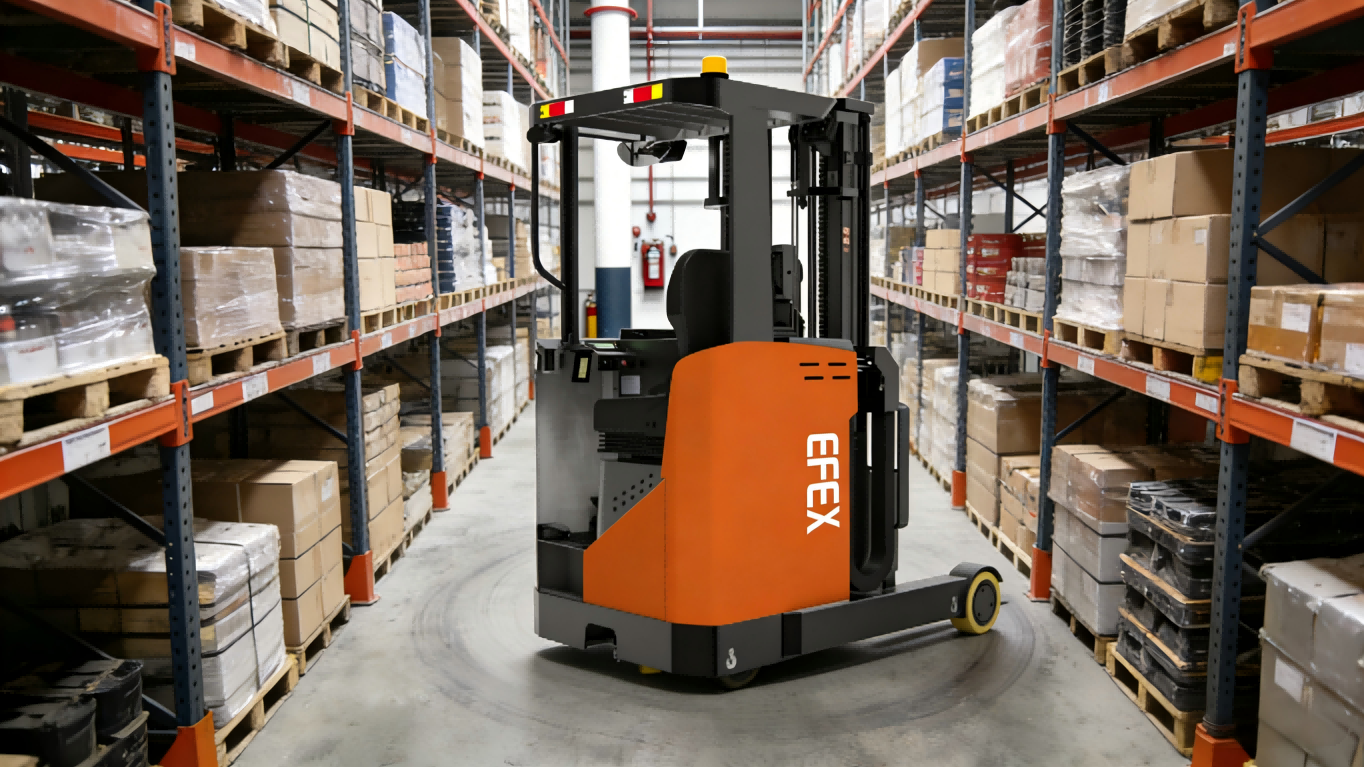

Reach Truck Seated Type

YB16/20R

Features

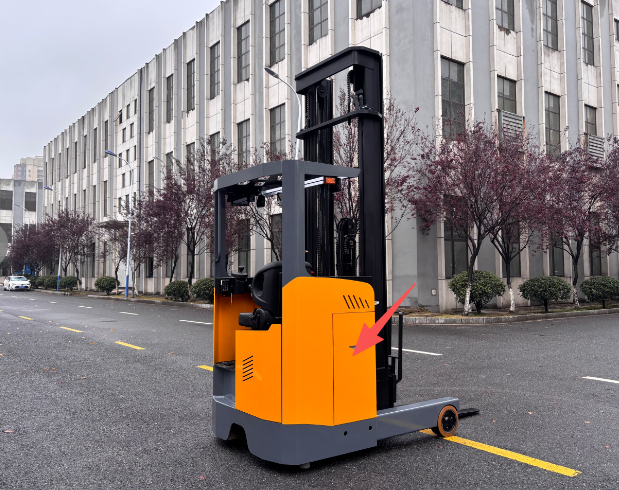

  • Intelligent front-wheel drive and side-pull battery.
  • Excellent ergonomics.
  • Easy and efficient maintainability.
  • Max. lifting height can reach 10.5m.
  • Small turning radius and right-angle stacking aisle.
  • Standard suspension seat makes comfortable operation.

Main Parameters

Specification/Model YB16R YB20R
Power Electric Electric
Drive Model Seated Seated
Rated Capacity 1600kg 2000Kg
Load Center 600mm 600mm
Max. Lifting Height 4500mm 4500mm
Battery Voltage 48V 48V
Battery Capacity 360Ah 420Ah
Drive motor power 6.4kW 6.4kW
Lift motor power 12.5kW 12.5kW
Reach Distance 615mm 650mm
Min. Turning Radius 1800mm 1915mm
