Pallet Trucks E Series

TB15/20E

Features

  • Ultralight weight, super-strong body structure.

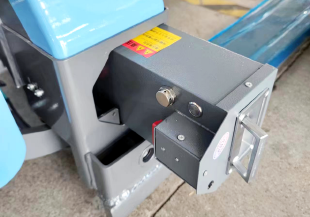

  • Side battery access, zero waiting downtime.

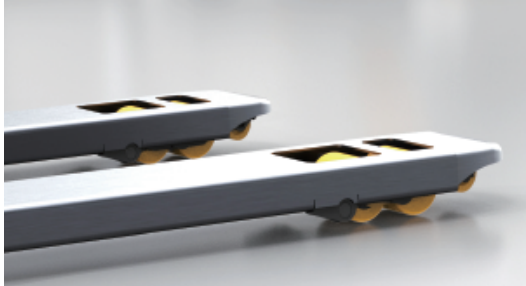

  • Dual-front-wheel design ensures smoother load lifting and significantly extends the service life of load-bearing wheels.

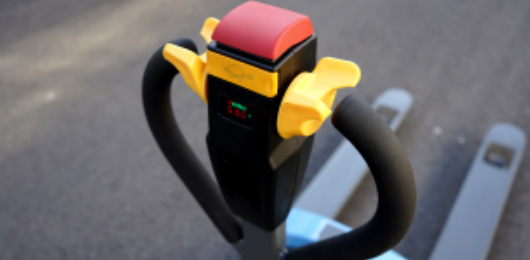

  • All switches and buttons are integrated at the optimal reachable positions for convenient and comfortable operation.
  • With a rated load of 2000kg, it can climb an 8% slope; when unloaded, it handles a 20% slope.

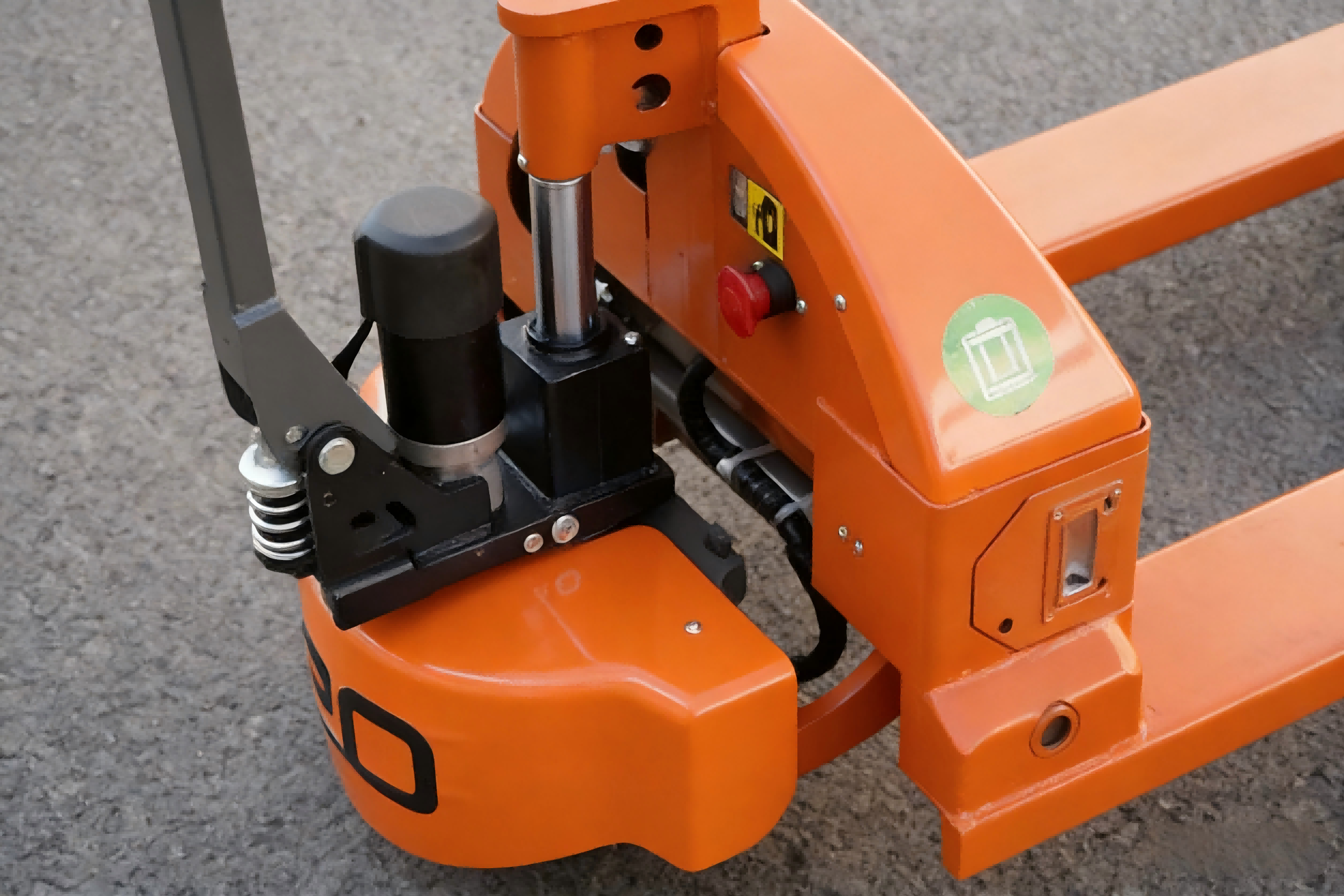

  • Integrated hydraulic pump station: compact structure, small size, sleek appearance and easy maintenance.

Main Parameters

Specification/Model TB15E TB20E
Power Electric Electric
Drive Model Walkie Walkie
Rated Capacity 1500kg 2000Kg
Load Center 600mm 600mm
Max. Lifting Height 115mm 115mm
Outer Fork Width 550/685mm 550/685mm
Fork Length 1150/1220mm 1150/1220mm
Battery Voltage 2*12V 2*12V
Battery Capacity 30Ah 30Ah
Drive motor power 800W 800W
