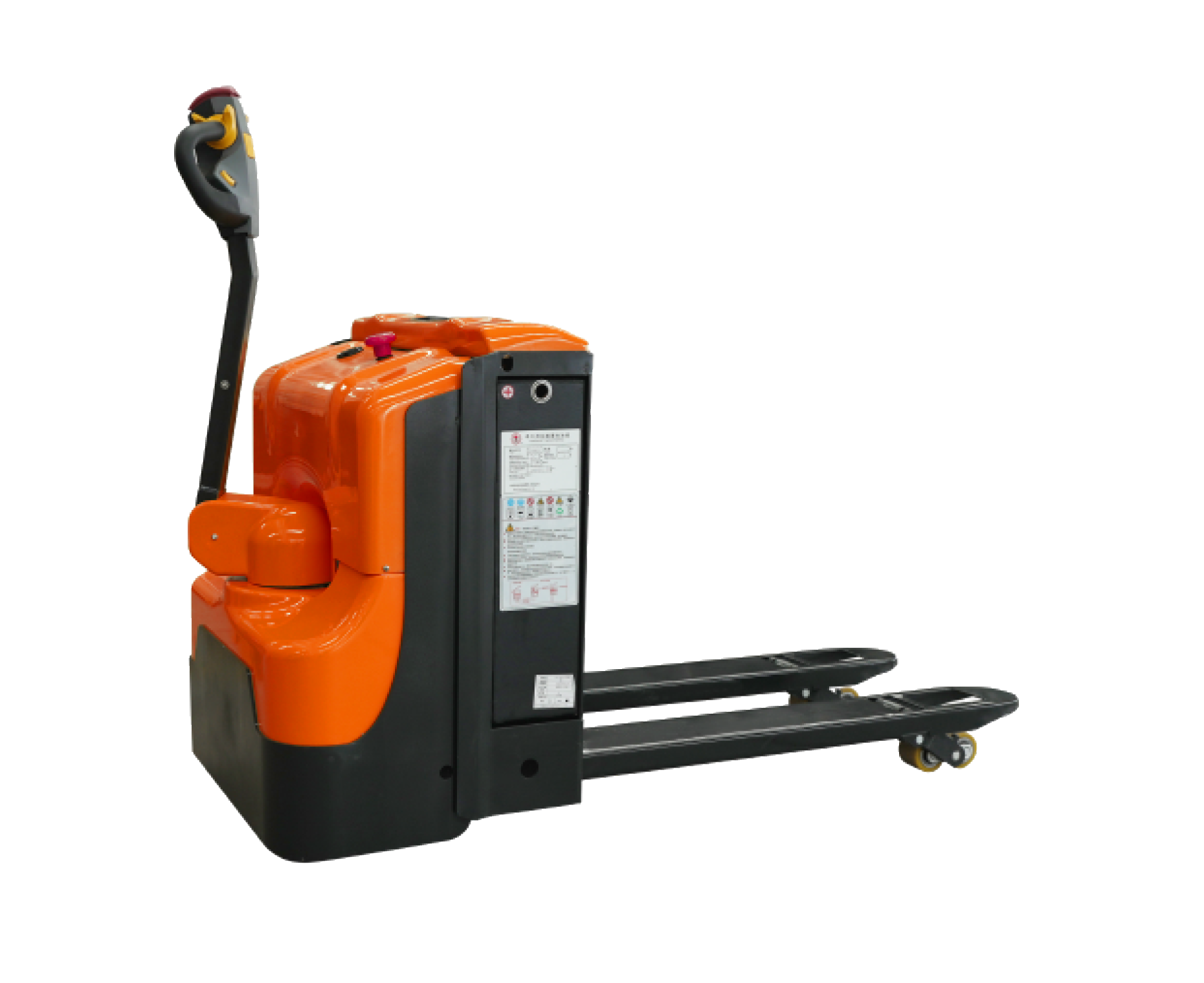

Pallet Trucks Walkie Type
TB20/25W

Features
-
Curtis controller: high-efficiency, precision, stability and reliability. All core components are easily accessible and diagnosable via CAN bus. -
The powerful AC drive motor delivers consistent, precise and responsive operation at all times. The maintenance-free system further reduces operational costs. -

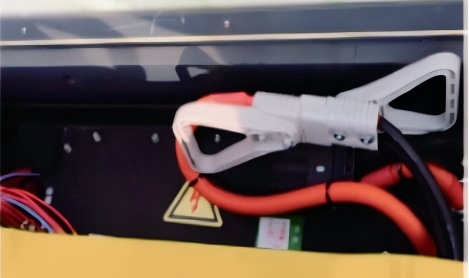

Side battery access comes as standard for quick and easy battery replacement, with lithium batteries available as an option. -
All switches and buttons are integrated at the optimal reachable positions for convenient and comfortable operation.
Main Parameters
| Specification/Model | TB20W | TB25W |
| Power | Electric | Electric |
| Drive Model | Walkie | Walkie |
| Rated Capacity | 2000kg | 2500Kg |
| Load Center | 600mm | 600mm |
| Max. Lifting Height | 115mm | 115mm |
| Outer Fork Width | 550/685mm | 550/685mm |
| Fork Length | 1150/1220mm | 1150/1220mm |
| Battery Voltage | 24V | 24V |
| Battery Capacity | 210Ah | 210Ah |
| Drive motor power | 0.8kW | 2.2kW |
