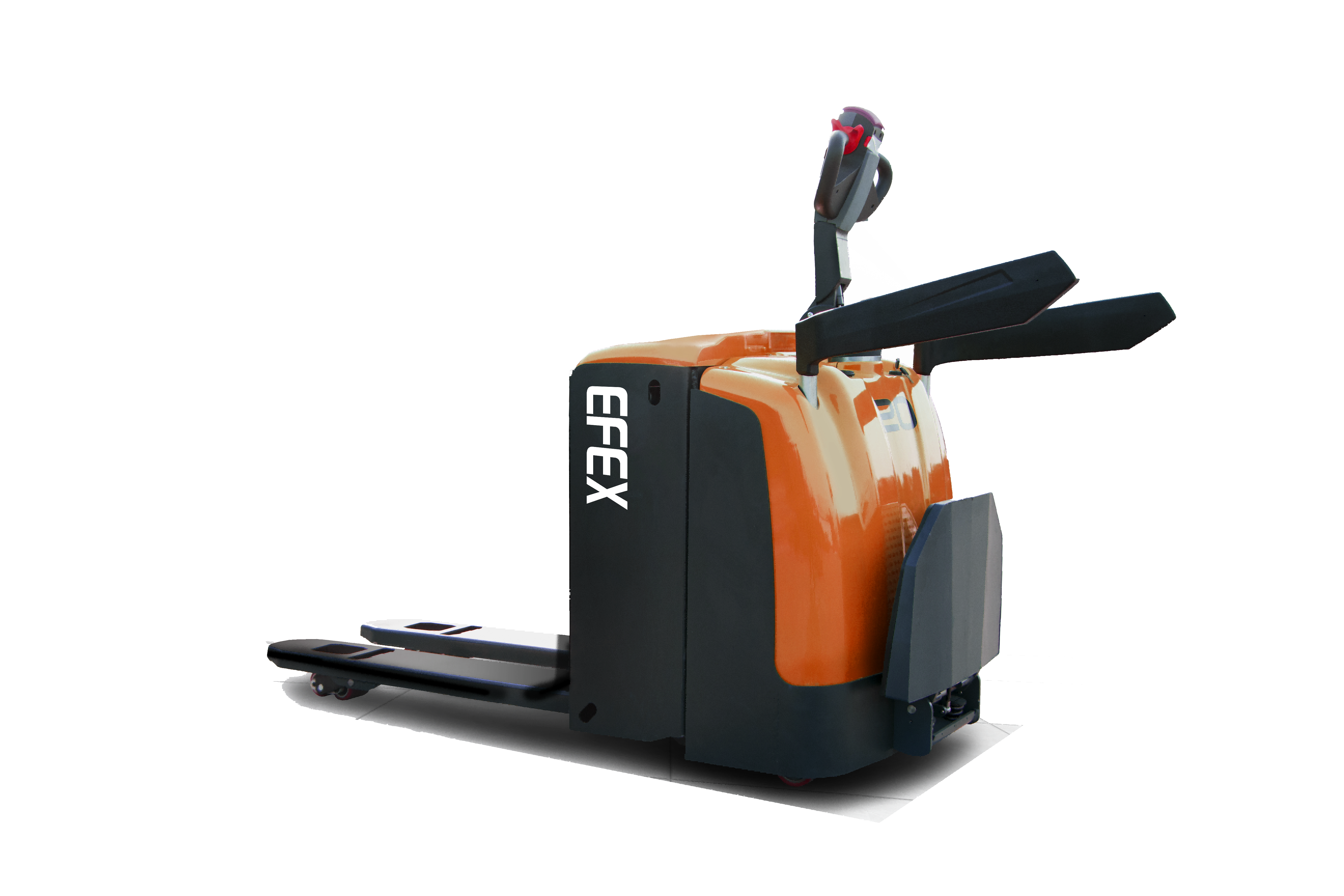

Pallet Trucks Stand-on Type
TB20/25/30R

Features
-

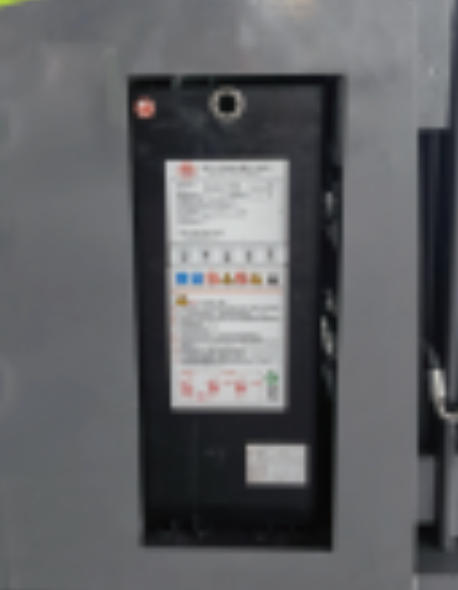

Slide-out side battery enables effortless battery replacement for customers. -

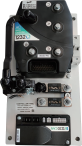

Curtis controller: high-efficiency, precision, stability and reliability. All core components are easily accessible and diagnosable via CAN bus. -
The powerful AC drive motor delivers consistent, precise and responsive operation at all times. The maintenance-free system further reduces operational costs.
Main Parameters
| Specification/Model | TB20R | TB25R | TB30R |
| Power | Electric | Electric | Electric |
| Drive Model | Stand-on | Stand-on | Stand-on |
| Rated Capacity | 2000kg | 2500Kg | 3000Kg |
| Load Center | 600mm | 600mm | 600mm |
| Max. Lifting Height | 200mm | 200mm | 200mm |
| Outer Fork Width | 550/685mm | 550/685mm | 550/685mm |
| Fork Length | 1150/1220mm | 1150/1220mm | 1150/1220mm |
| Battery Voltage | 24V | 24V | 24V |
| Battery Capacity | 210Ah | 210Ah | 210Ah |
| Drive motor power | 1.5kW | 1.5kW | 2.5kW |
