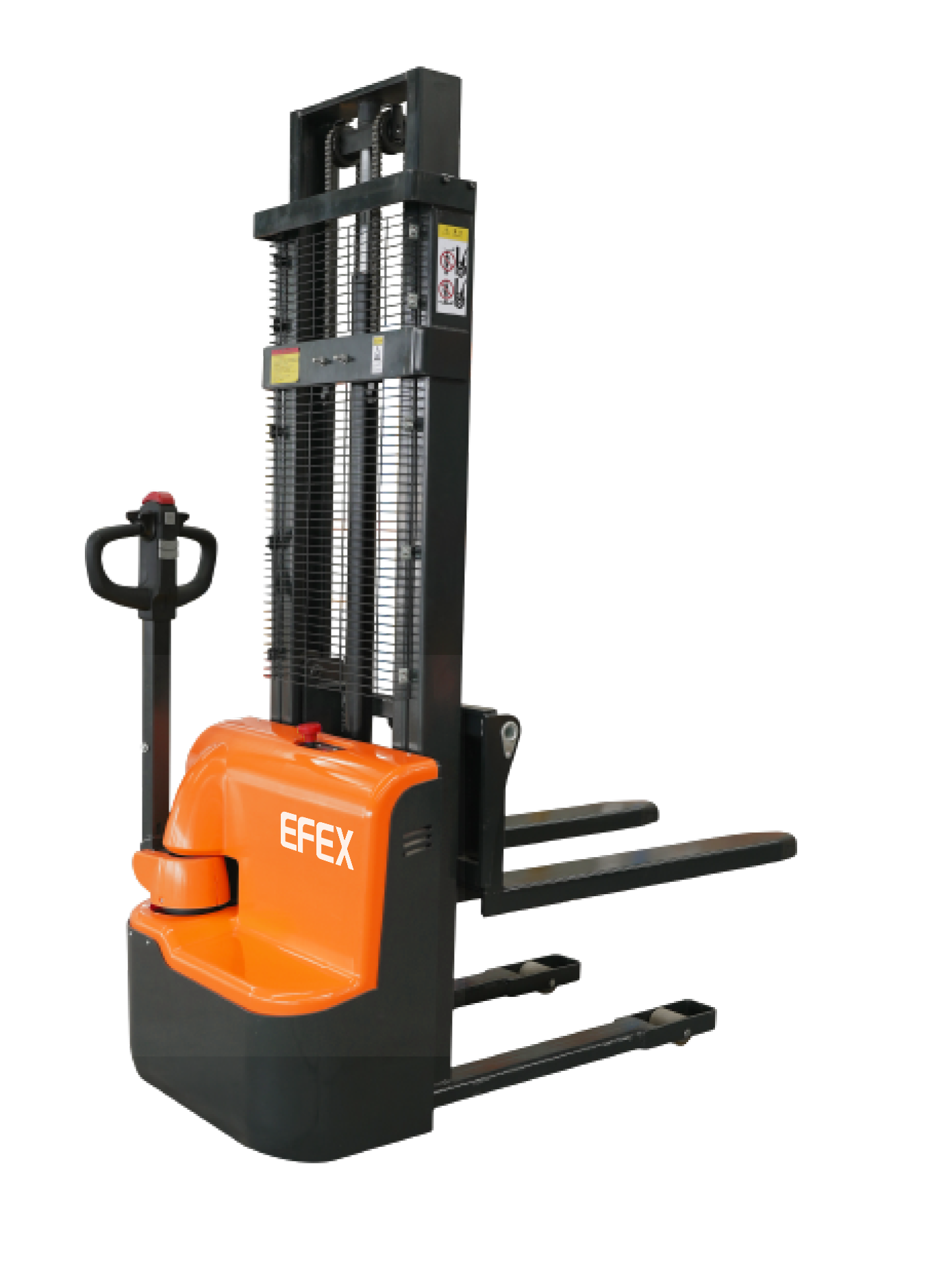

Stacker Trucks E Series
DB12/15E

Features
-

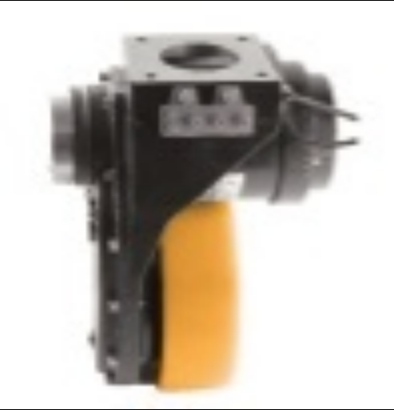

Top-mounted horizontal drive wheel for easy maintenance; the motor boasts excellent dustproof and waterproof performance. -
Four-point chassis structure equipped with balance wheels ensures excellent stability during travel and lifting operations. -
Reinforced forks.
Main Parameters
| Specification/Model | DB12E | DB15E |
| Power | Electric | Electric |
| Drive Model | Walkie | Walkie |
| Rated Capacity | 1200kg | 1500Kg |
| Load Center | 600mm | 600mm |
| Max. Lifting Height | 1600/2500/3000/3300/3500mm | 1600/2500/3000/3300/3500mm |
| Outer Fork Width | 560/685mm | 560/685mm |
| Fork Length | 1150/1220mm | 1150/1220mm |
| Battery Voltage | 2*12V | 2*12V |
| Battery Capacity | 85Ah | 85Ah |
| Drive motor power | 0.65kW | 0.65kW |
| Lift motor power | 2.2W | 2.2kW |
