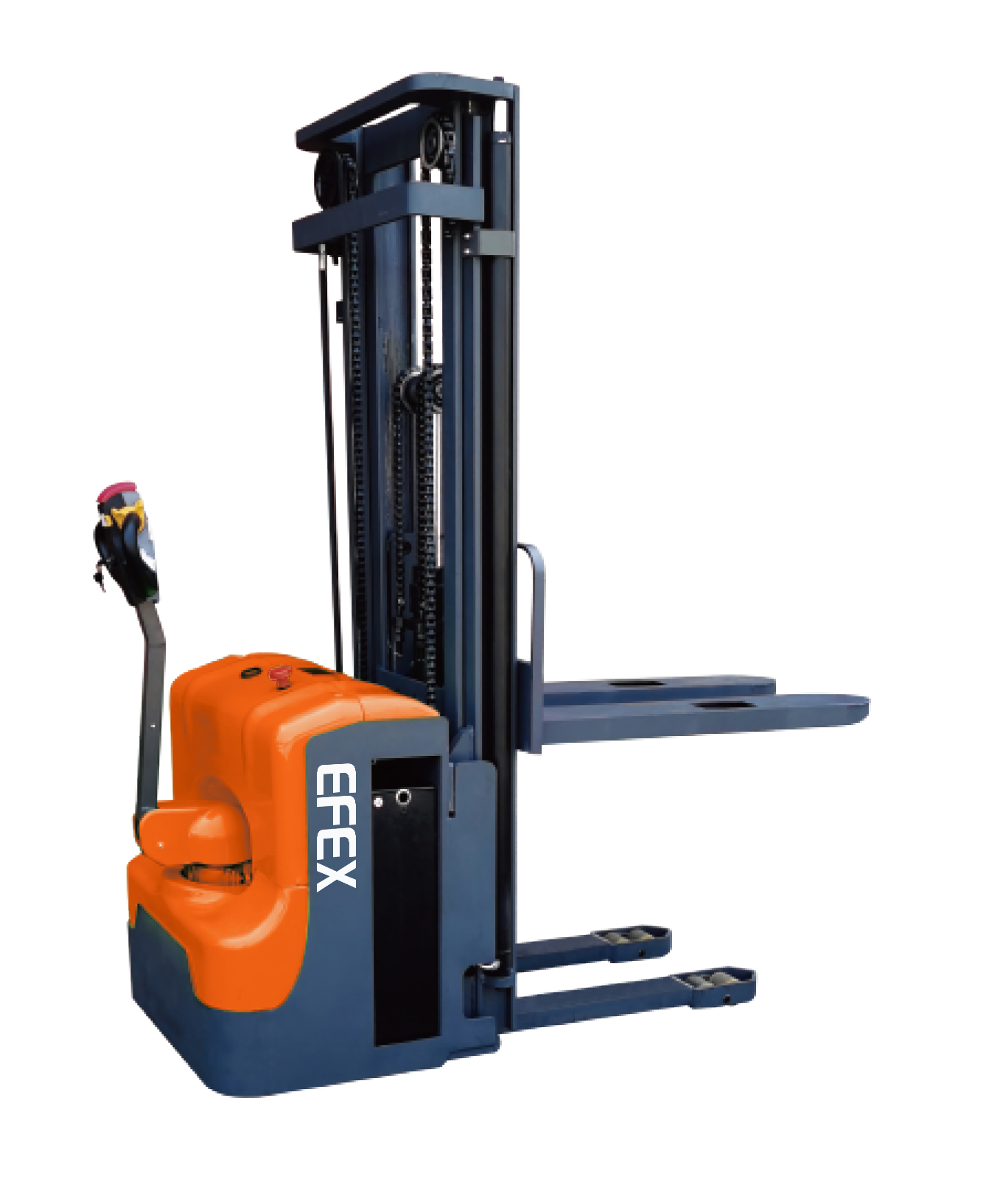

Stacker Trucks Walkie Type

DB16/20W

Features

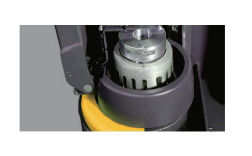

  • The powerful AC drive motor delivers consistent, precise and responsive operation at all times. The maintenance-free system further reduces operational costs.
  • Side battery access comes as standard for quick and convenient battery replacement, with lithium-ion batteries available as an option.
  • The hydraulic pump station is equipped with dual solenoid valves and features two lowering speed gears to meet the requirements of various working conditions.

Main Parameters

Specification/Model DB16W DB20W
Power Electric Electric
Drive Model Walkie Walkie
Rated Capacity 1600kg 2000Kg
Load Center 600mm 600mm
Max. Lifting Height 3000 3000
Outer Fork Width 560/685mm 560/685mm
Fork Length 1150/1220mm 1150/1220mm
Battery Voltage 24V 24V
Battery Capacity 210Ah 210Ah
Drive motor power 1.25kW 1.25kW
Lift motor power 3.0kW 3.0kW
