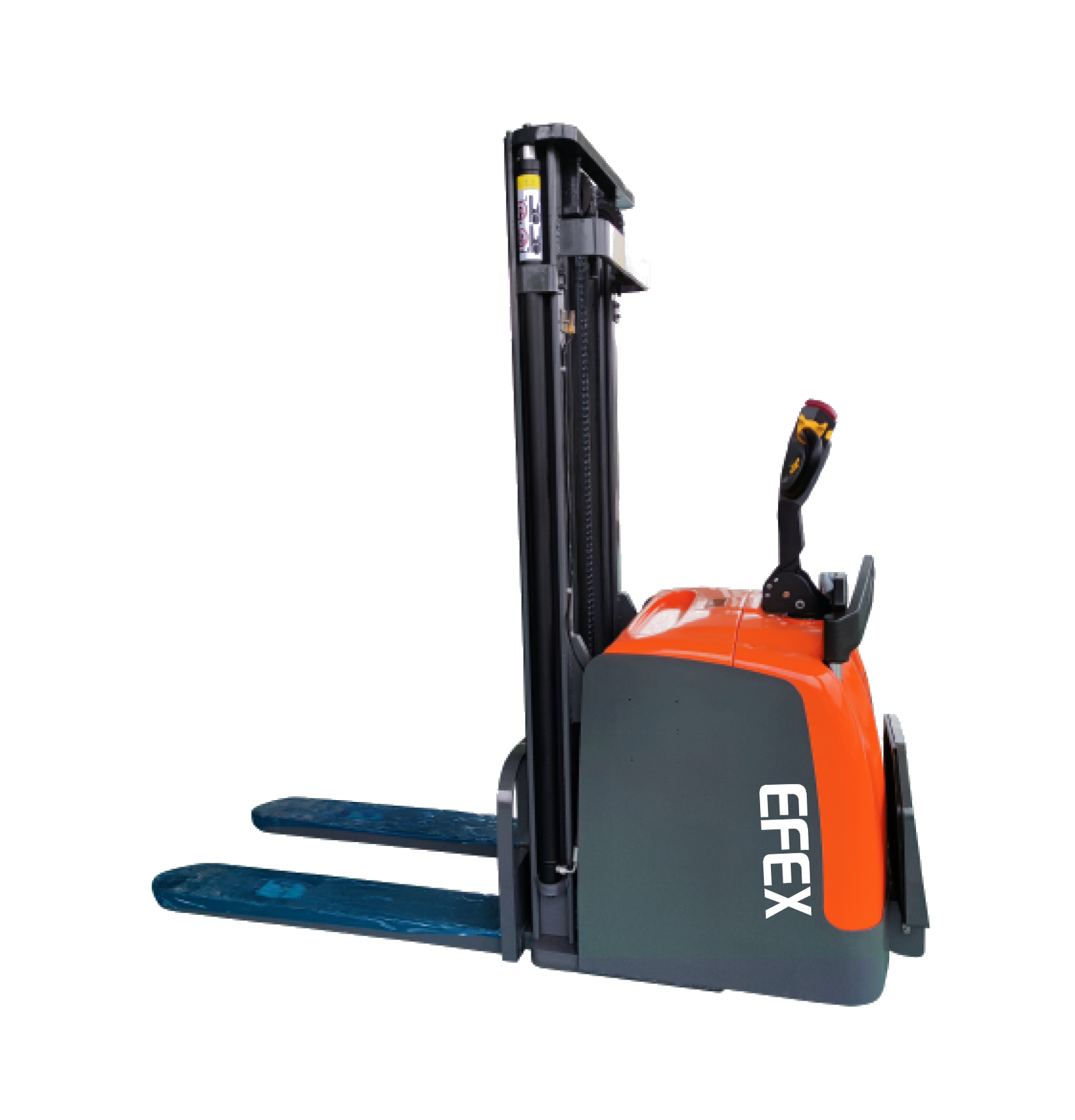

Stacker Trucks Stand-on Type

DB16/20R

Features

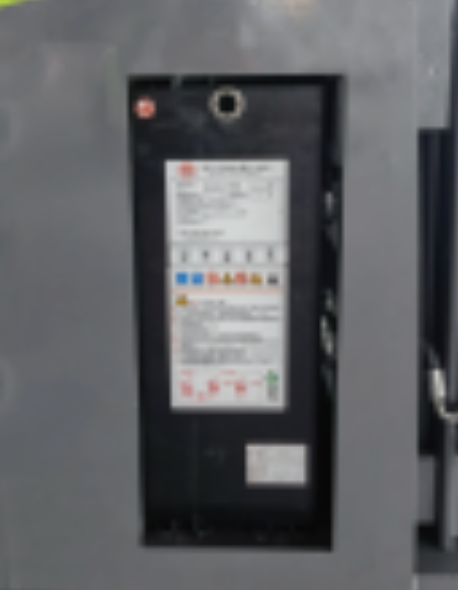

  • Side battery access comes as standard for quick and convenient battery replacement, with lithium-ion batteries available as an option.
  • Dual solenoid valves offer two lowering speed gears to meet the demands of various working conditions.
  • Equipped with electronic lifting limit, it ensures smooth and shock-free lifting, effectively protecting the lifting motor.

Main Parameters

Specification/Model DB16R DB20R
Power Electric Electric
Drive Model Stand-on Stand-on
Rated Capacity 1600kg 2000Kg
Load Center 600mm 600mm
Max. Lifting Height 3000 3000
Outer Fork Width 560/685mm 560/685mm
Fork Length 1150/1220mm 1150/1220mm
Battery Voltage 24V 24V
Battery Capacity 210Ah 210Ah
Drive motor power 1.5kW 1.5kW
Lift motor power 3.0W 3.0W
